HLD FD3.2 1.5 kW Horizontal-Axis Wind Turbine

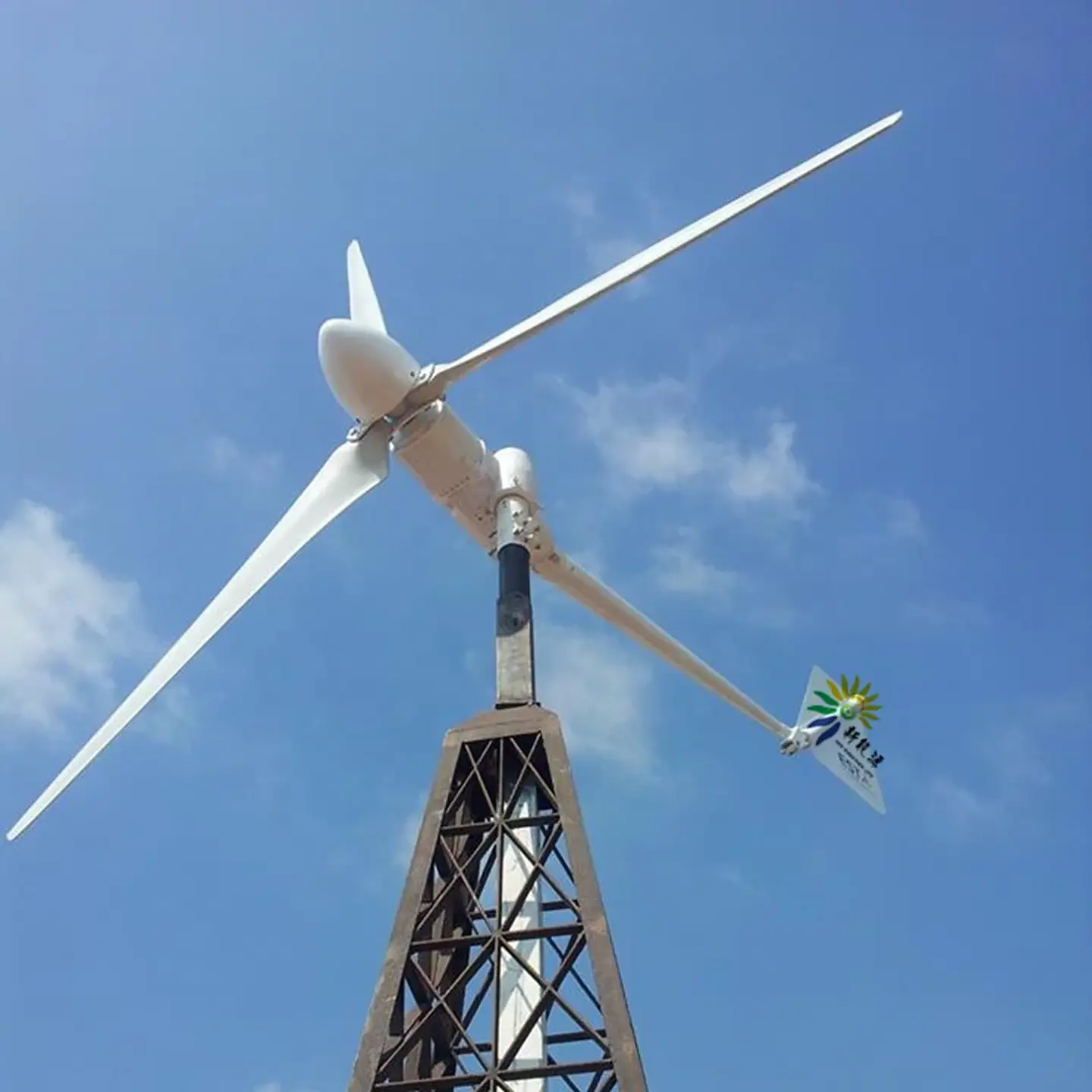

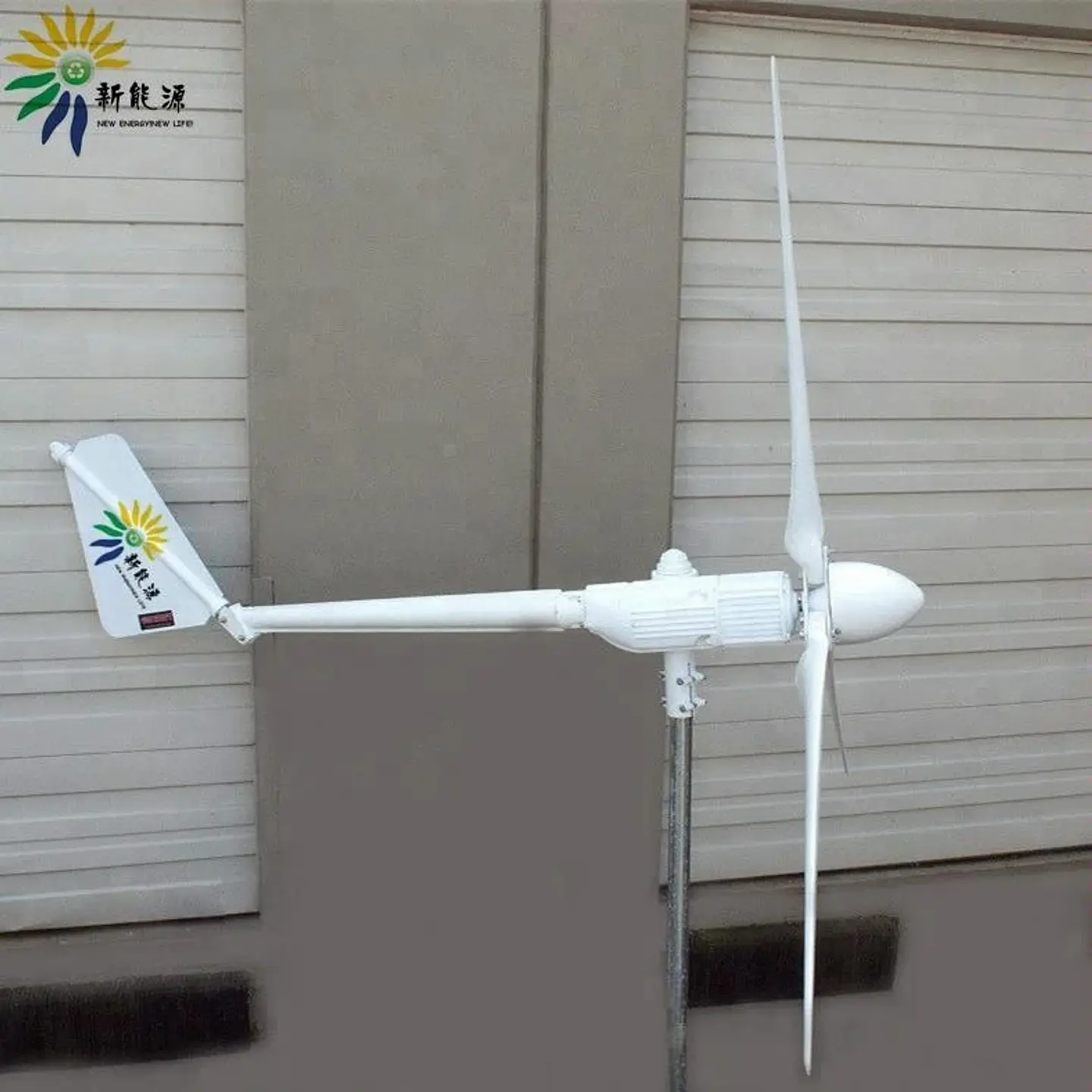

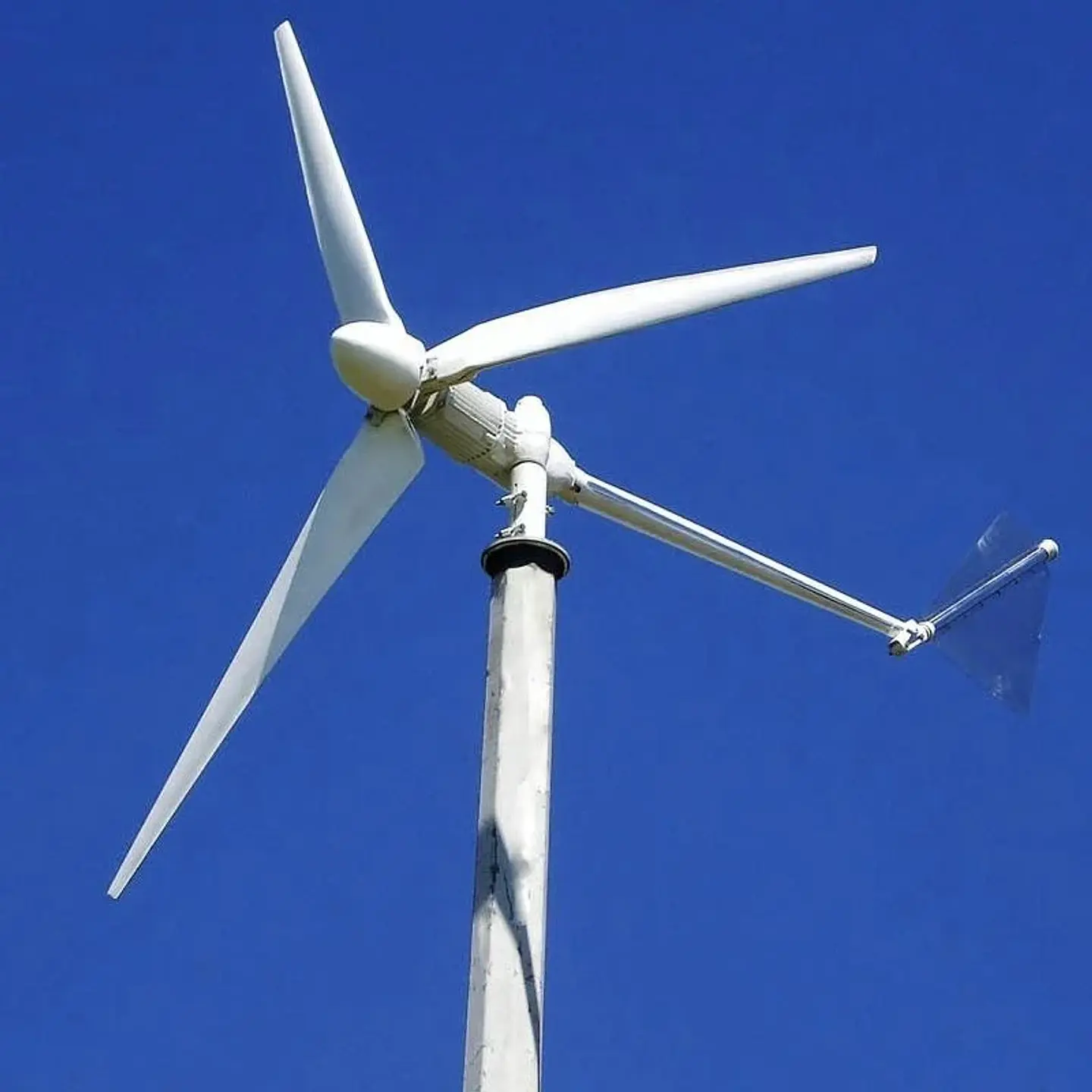

The HLD FD3.2 is a three-blade, horizontal-axis wind turbine with a permanent-magnet, three-phase AC generator. Supplier specifications list 1,500 W rated output, up to 2,000 W maximum output, a 3.2 m rotor diameter, 9 m/s rated wind speed and a 2 m/s cut-in wind speed.

Specifications listed by supplier

• Rated output: 1,500 W; maximum output: 2,000 W
• Rotor diameter: 3.2 m
• Generator: three-phase permanent-magnet AC
• Rated wind speed: 9 m/s; cut-in wind speed: 2 m/s
• Listed survival wind speed: 40 m/s
• Voltage options and tower heights vary by configuration

Plan a compatible system

Confirm the selected voltage, tower, controller, dump load, inverter, batteries and grid-tie/off-grid configuration before ordering. Actual energy production depends on the local wind resource, tower height, installation and system design.

Contact Nova Bliss with your site location and power requirements to confirm the correct configuration and delivered price.
