PV Solar Cable 14/12/10 AWG 2.5mm2 4mm2 6mm2 10mm2 Solar Power Cable Wire Cable for PV Panels Connection Red Black XLPE jacket

Color
Specification
Length

Description

SPECIFICATIONS


Brand Name: NONE

Certification: CE

Choice: yes

Conductor Material: Copper

Does it include a Battery?: No

Does it include wireless functionality?: No

High-concerned chemical: none

Insulation Material: PVC

Origin: Mainland China

Structure: Without modular telephone connectors

Use: Not Telecommunication

Voltage: 81-600V（include600V）


1 pcs solar cable red or black 10mm/6mm/4mm/2.5mm(8AWG/10AWG/12AWG/14AWG)

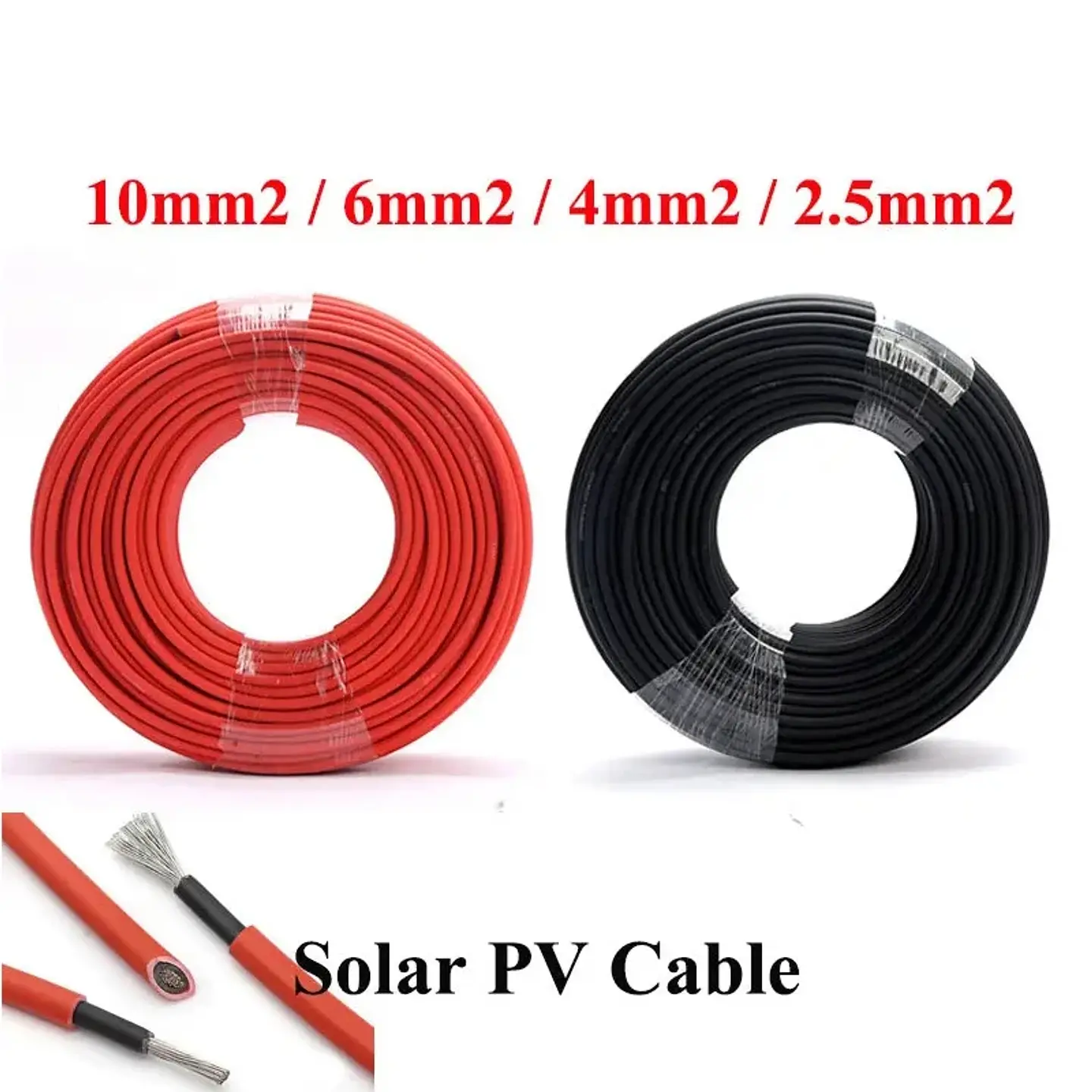

Cable size range : 10mm2(8AWG)/6mm2(10AWG)/4mm2(12AWG)/2.5mm2(14AWG)

1 Meters (3.28ft) / 2 Meters (6.56ft) / 3 Meters (9.84ft) /  5 Meters (16.4ft) / 10 Meters (32.8ft)


Products Description:
1,Conductor: Stranded, tinned copper,
2,Inner insulation: XLPE
3,Outer jacket: PVC
4,Color: Black and Red
Technical specification:
1,Nominal voltage: 600/1000V AC
2,Test voltage: AC 2.5 KV
3,Temperature rating: -40°C~90°C wet or dry,
4,Ambient temperature :> 25 years  -40°C~ + 90°C
Material propertied/standards:
1,Fire performance: IEC 60332-1
2,Smoke emission: IEC 61034; EN 50268-2
3,Low fire load: DIN 51900
Advantages:
1,Electron- beam cross-linked compounds
2,UV,ozone and hydrolysis resistant
3,High temperature resistant, the materials do not melt or flow

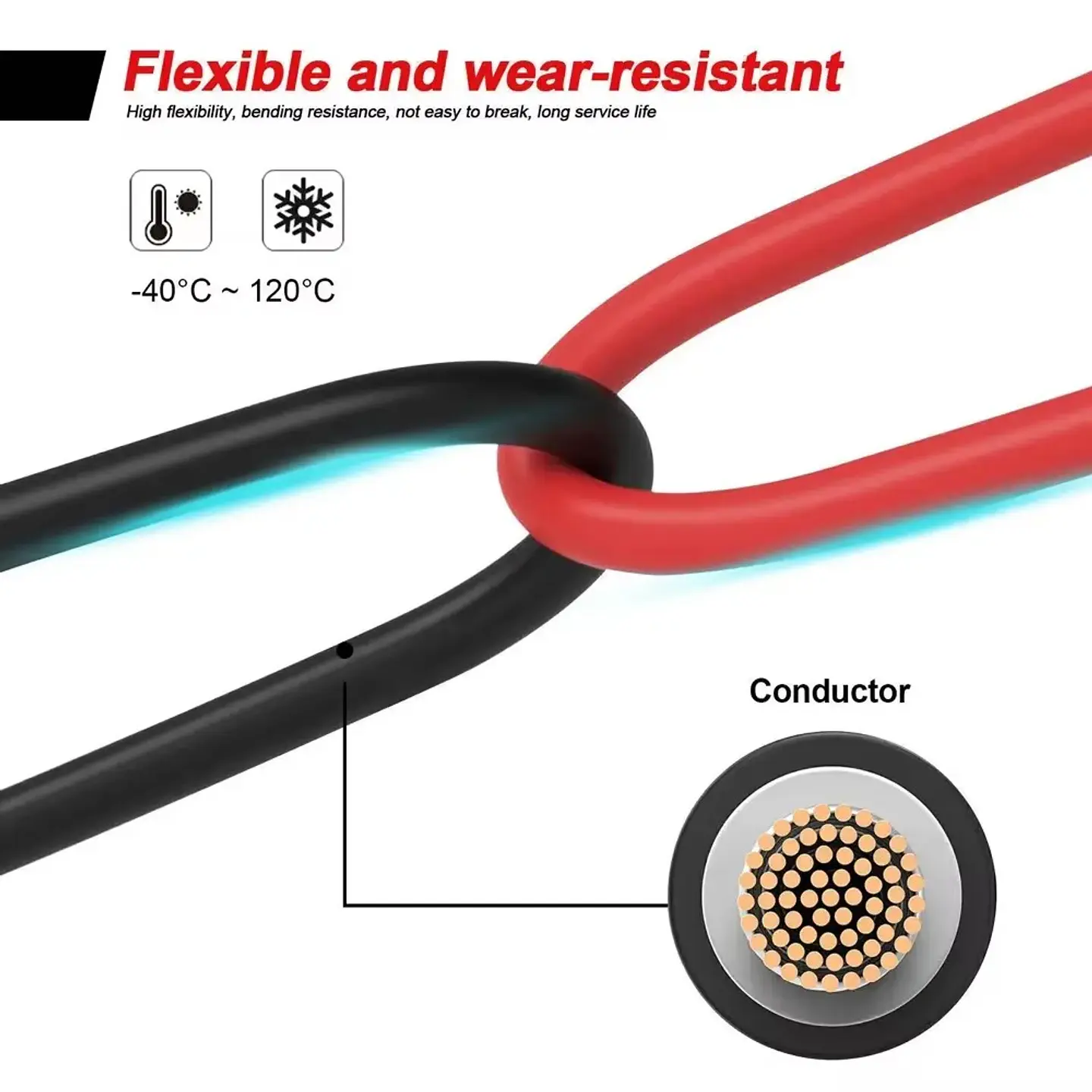

4,Good cold flexibility
5,Very long service life > 25 years at 90°C

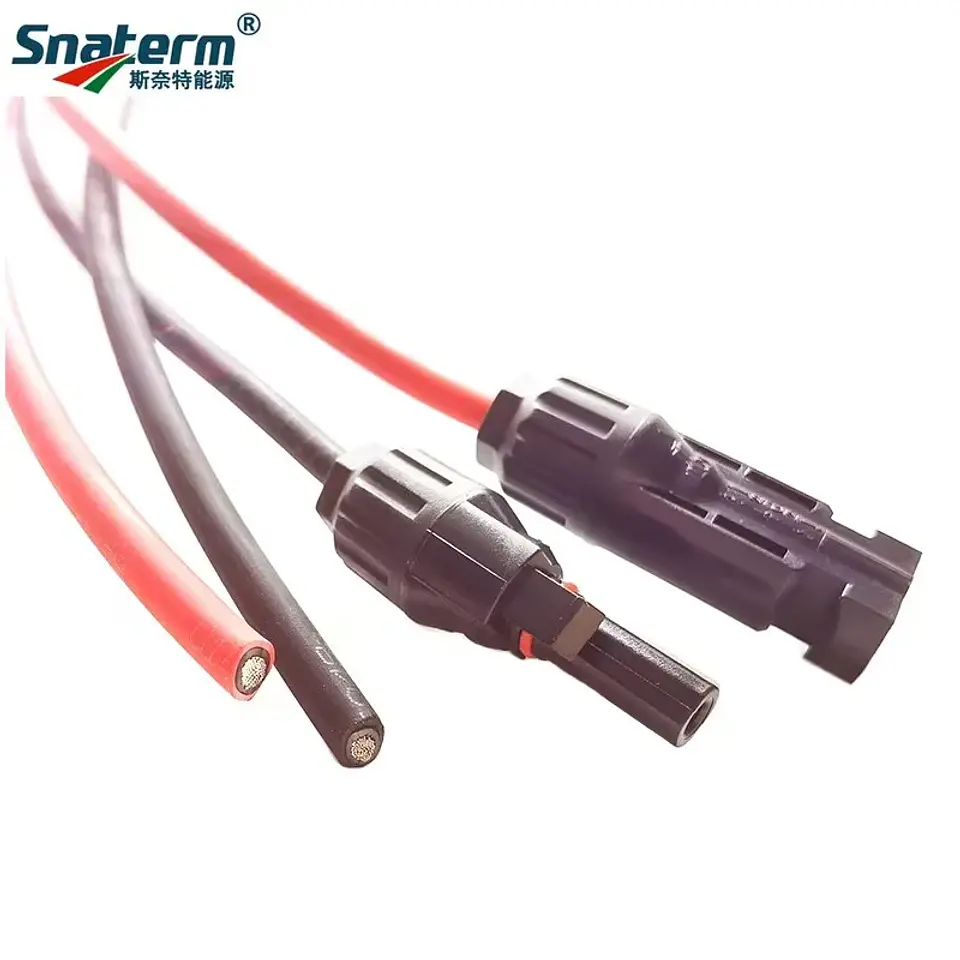

6,Compatible to all popular connectors


Solar Cable Structure  :

INTRODUCTION

specifications:2.5/4/6/10mm²
Rated voltage: AC 0.6/1KV,DC1.5KV
Color: Red / Black

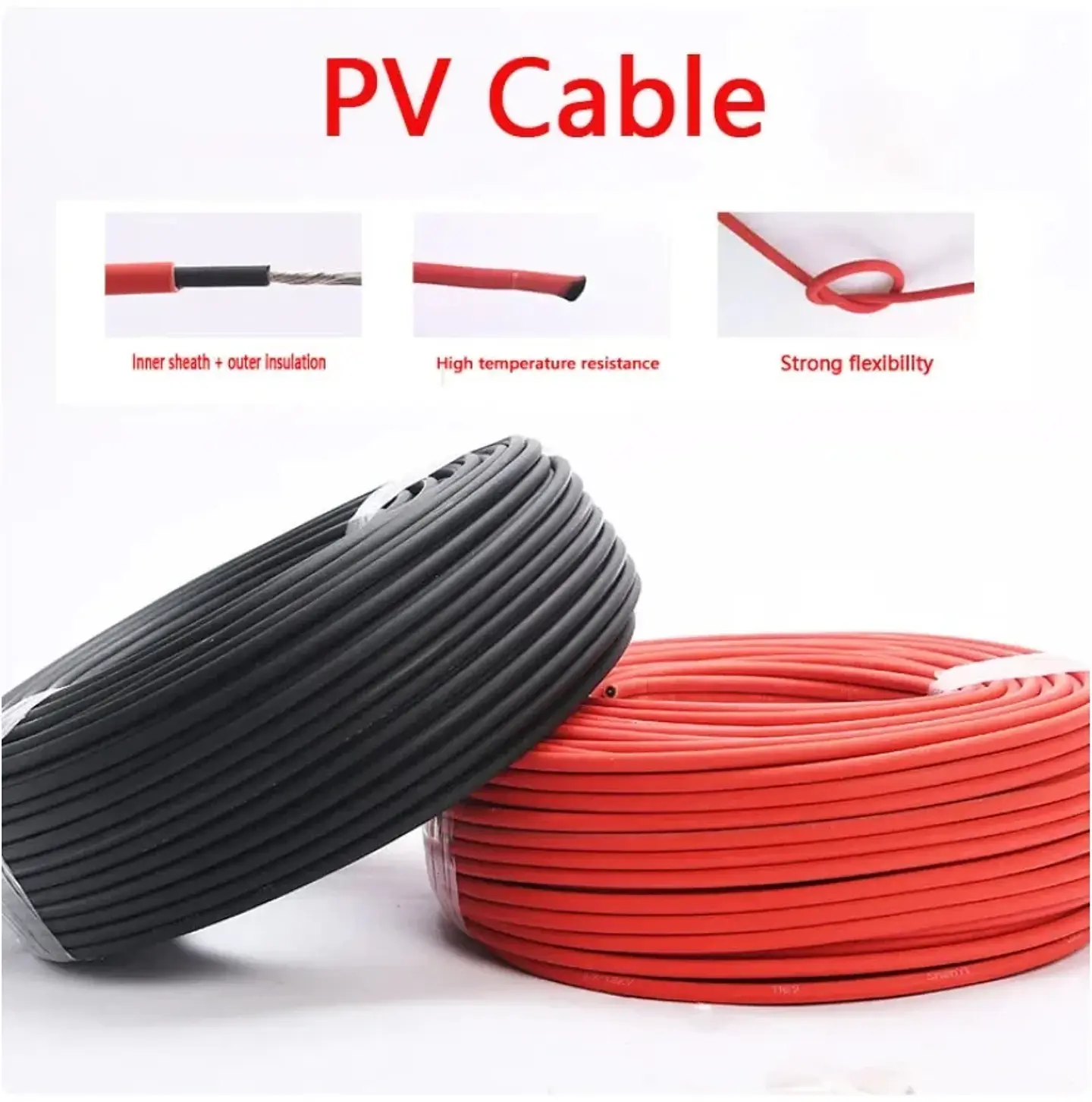

Feature: Double insulation cover
Conductor material: stranded tin-plated ~ 99.95% oxygen-free copper
Outer Sheath: Halogen-free low-smoke polyolefin(XLPO)
Inner Insulation: Halogen-free low-smoke polyolefin(XLPO)
Service life: 25 years (-40 ℃ -90 ℃)
Application: Indoor and outdoor solar installations
Fire rating: UL94-V0
Seller declaration: This item is double-sheathed cable, which is not as soft as single-sheathed cable and silicone cable, please pay attention to the distinction


TECHNICAL PARAMETERS

Model
Safe current(A)
Core diameter (mm)
Conductor cross section(mm²)
16 AWG
19
30*0.25
1.5
14 AWG
28
35*0.3
2.5
12 AWG
36
56*0.3
4
10 AWG
48
84*0.3
6
8 AWG
65
142*0.3
10
6 AWG
95
227*0.3
16
4 AWG
120
190*0.4
25

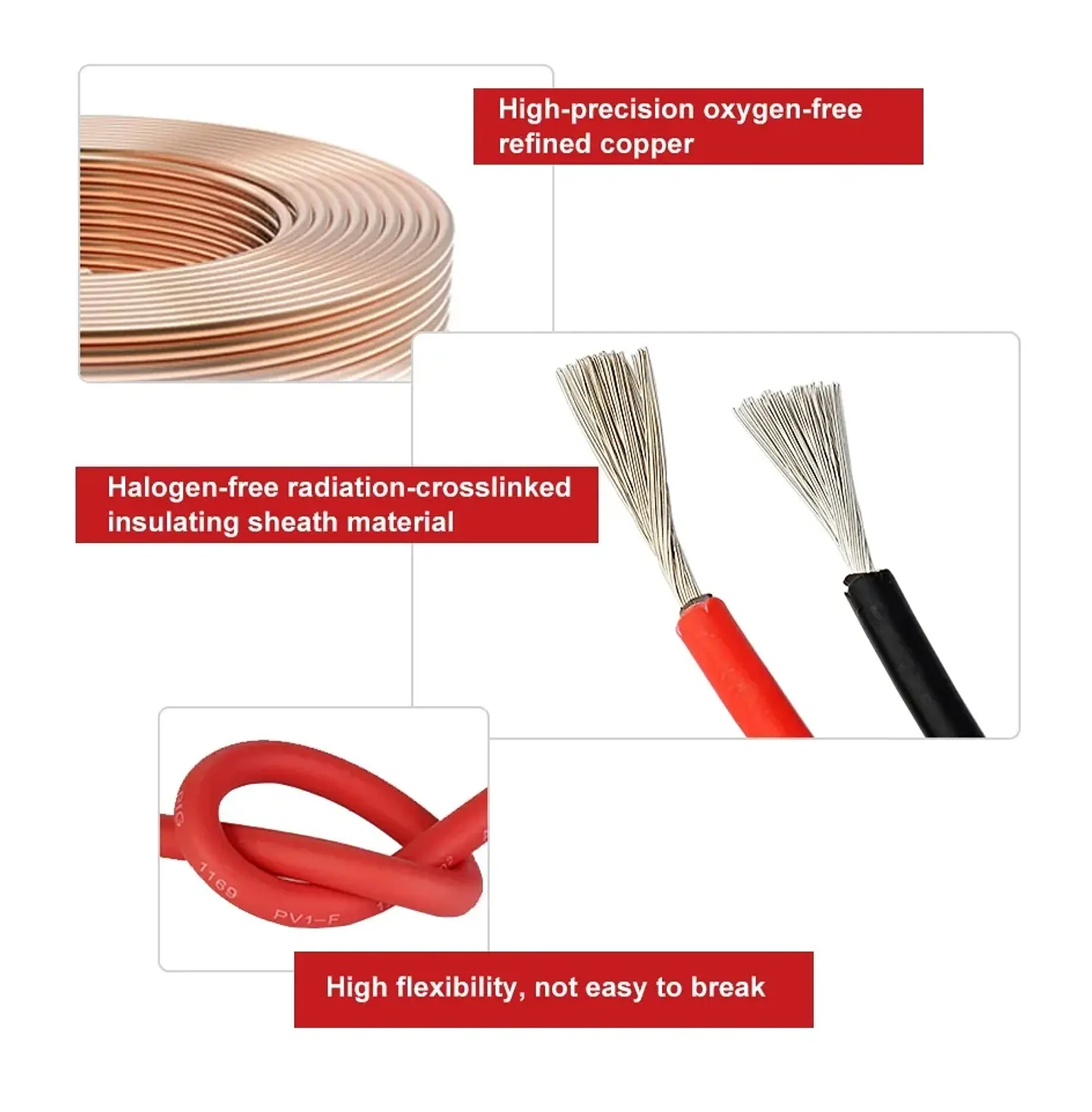

Conductor: Tin-plated high-purity oxygen-free copper, electrical performance and structure meet the requirements of ASTMB33 or ASTMB172
Insulation: Thermosetting environmental protection insulation material, generally black
Sheath: Thermosetting radiation-crosslinked polyvinyl chloride environmental protection UV-resistant sheath material


ADVANTAGES
