SPECIFICATIONS
Brand Name: EVSOLAR
Choice: yes
Conductor Material: Copper
Conductor Type: Stranded
Does it include a Battery?: No
Does it include wireless functionality?: No
High-concerned chemical: none
Insulation Material: PVC
Origin: Mainland China
Structure: Without modular telephone connectors
Use: Not Telecommunication
Voltage: 81-600V（include600V）
High Performance 4/6/2.5mm² Solar PV Cable 12/14/10AWG Solar PV Cable Red And Black Color
Note: When you choose the product color and length
"100m Black Cable" means you will receive 100 meters black cable.
"100m Red Cable" means you will receive 100 meters red cable.
"100m black and red"means you will recive100 meters black cable and 100 meters red cable.
The other lengths are selected in the same way as above.
Application
Solar Cable used for interconnection wiring of grounded and ungrounded photovolatic power systems.
Cable design

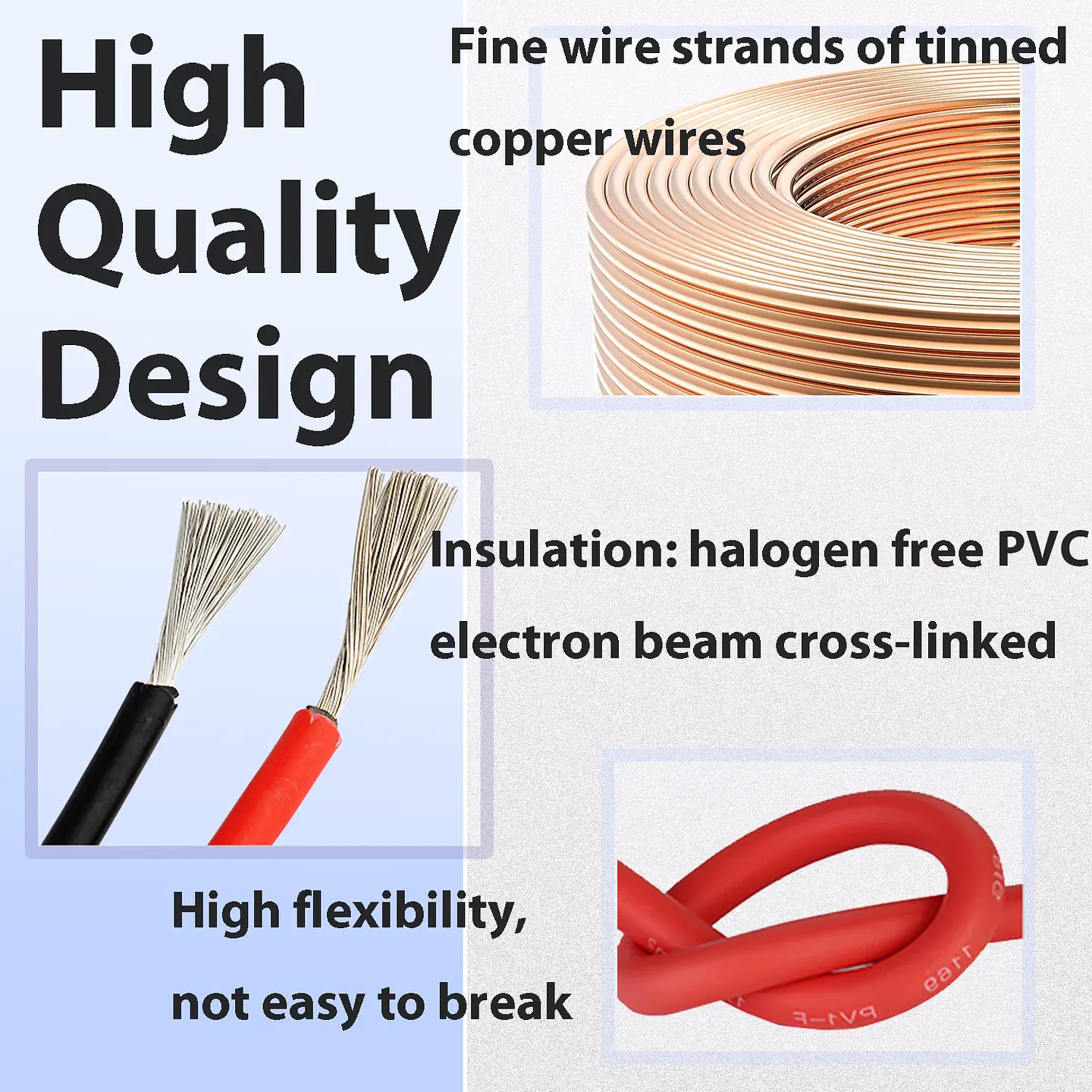

Conductor: fine wire strands of tinned copper wires, acccording IEC 60228, Class 5

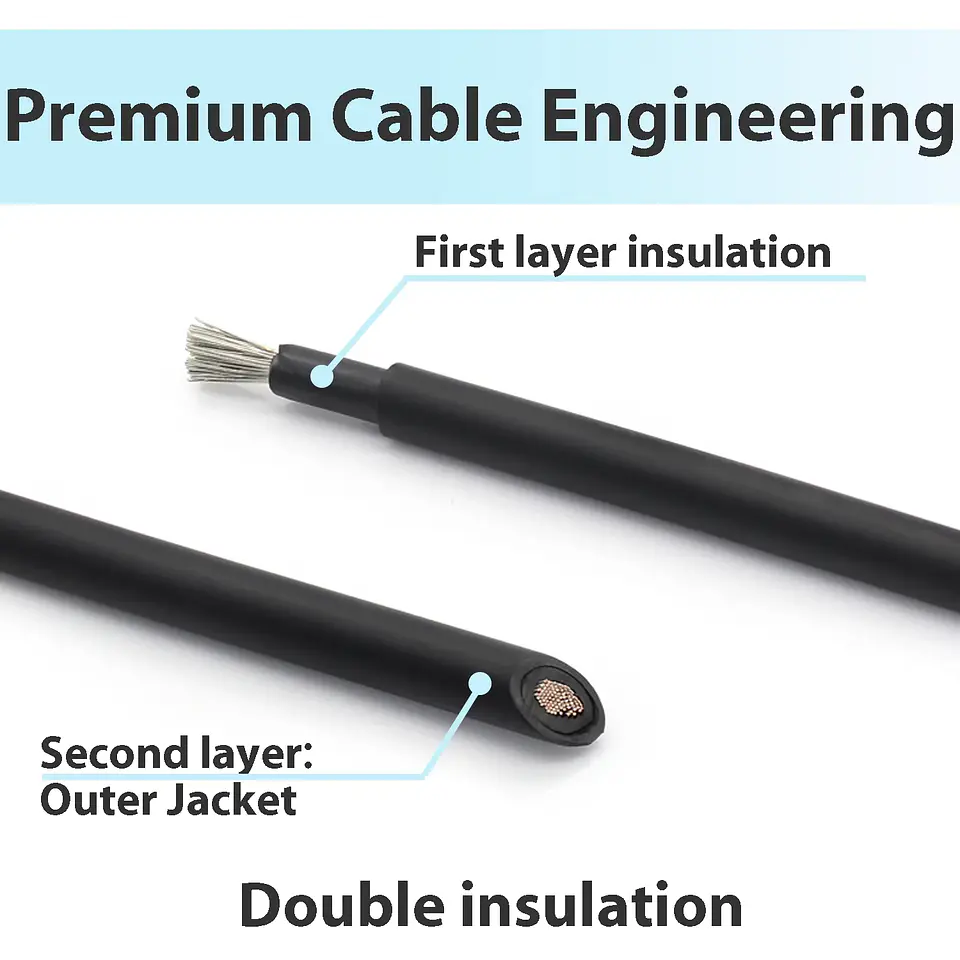

Insulation: halogen free PE, electron beam cross-linked. Color: Black

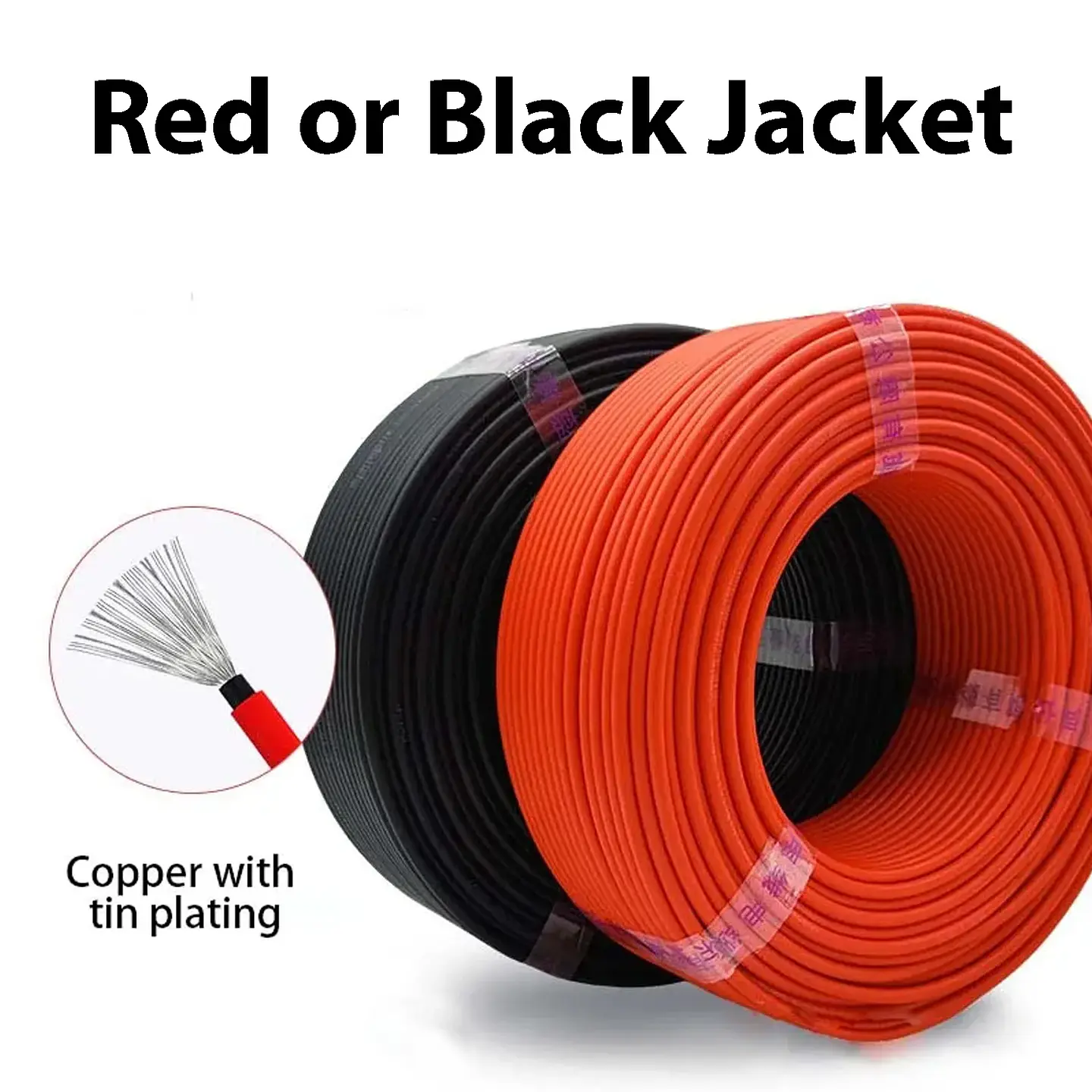

Outer jacket: halogen free and flame retardant PE, eletron beam cross-linked resistance against water, UV resistant. Jacket Color: Black or Red

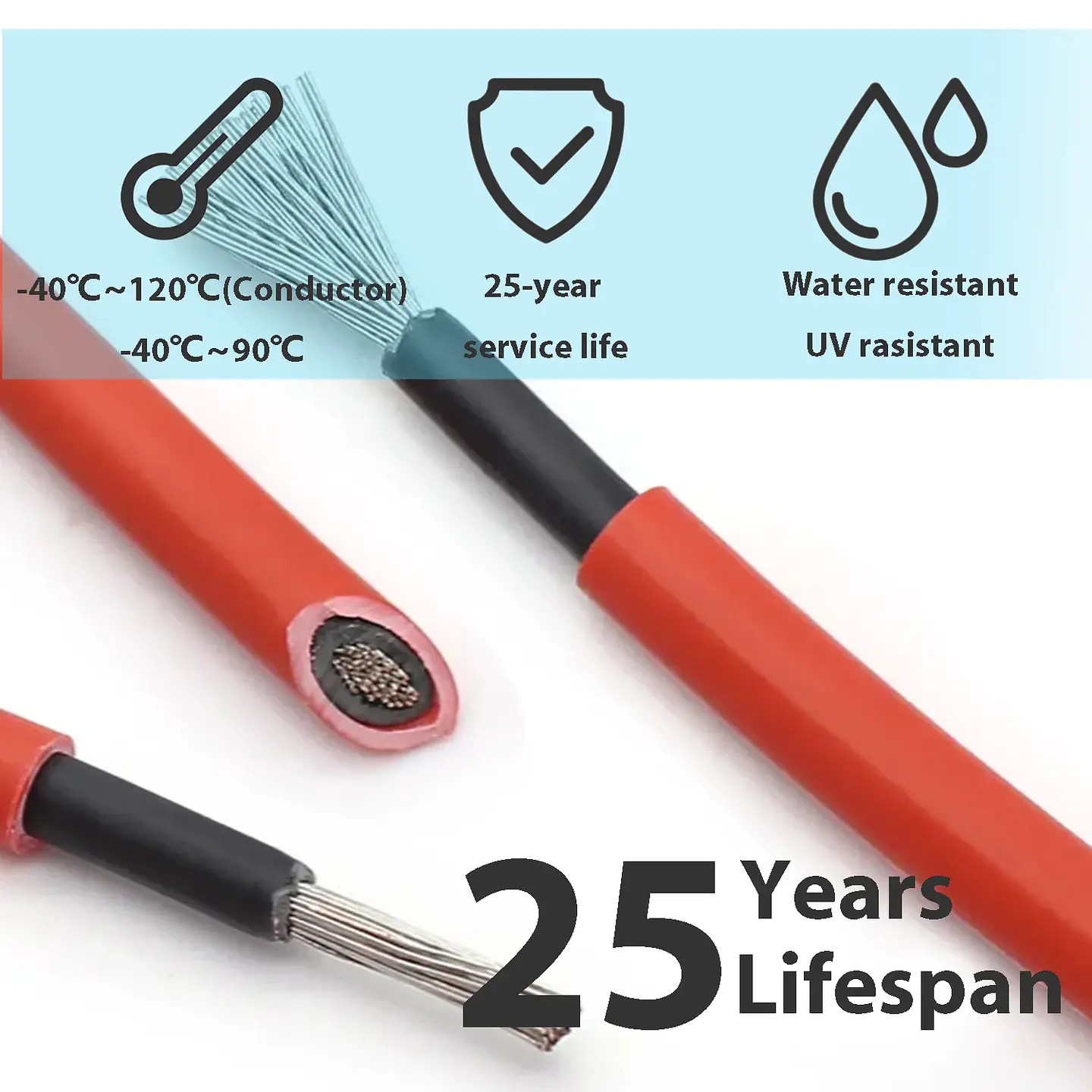

Temperature range
Max. temperature at conductor | -40℃~120℃ |
Temperature range | -40℃~90℃ (min. 25 years)
|
Electrical characteristics
Nominal voltageU0/U | AC 600/1000V, DC 900/1500V |
Mat.DC voltage | 1800V (conductor-conductor,non earthed system,circuit not under load) |
AC-test-voltage | 6.5KV |
Min. Surface resistance of sheath | 10^9Ω |
Min.bending radius | 5 x cable diameter |
Other tests | accorfing EN 50395 |
Mechanical Characteristics
Min.bending radius | 5 x cable diameter |
Tensile strength and elongation | according EN 60811-1-1 |
Cold Bending | according EN 60811-1-4 |
Thermal endurance properties | according EN60216-2 |
Environmental characteristics
Halogen free | according TUV 2PfG 1169/08.2007 Annex B |
Ozone resistance | according EN 50396 |
UV resistance | according HD 605/A1 |
Flame characteristics | according IEC 60332-1-2 |
Product Description
Size(mm² ) | Conduct or dia. N/mm | Insulation dia.(mm) | Core color | Nominal Jacket dia.(mm) | Rated Current at 60℃(A) | Jacket Color
|
2.5 | 50/0.25 | 3.65 | Black | 5.25 | 41 | Black |
2.5 | 50/0.25 | 3.65 | Black | 5.25 | 41 | Red |
4.0 | 56/0.30 | 4.20 | Black
| 6.05 | 55 | Black
|
4.0 | 56/0.30 | 4.20 | Black
| 6.05 | 55 | Red
|
6.0 | 84/0.30 | 4.90 | Black
| 6.50 | 70 | Black
|
6.0 | 84/0.30 | 4.90 | Black
| 6.50 | 70 | Red
|
