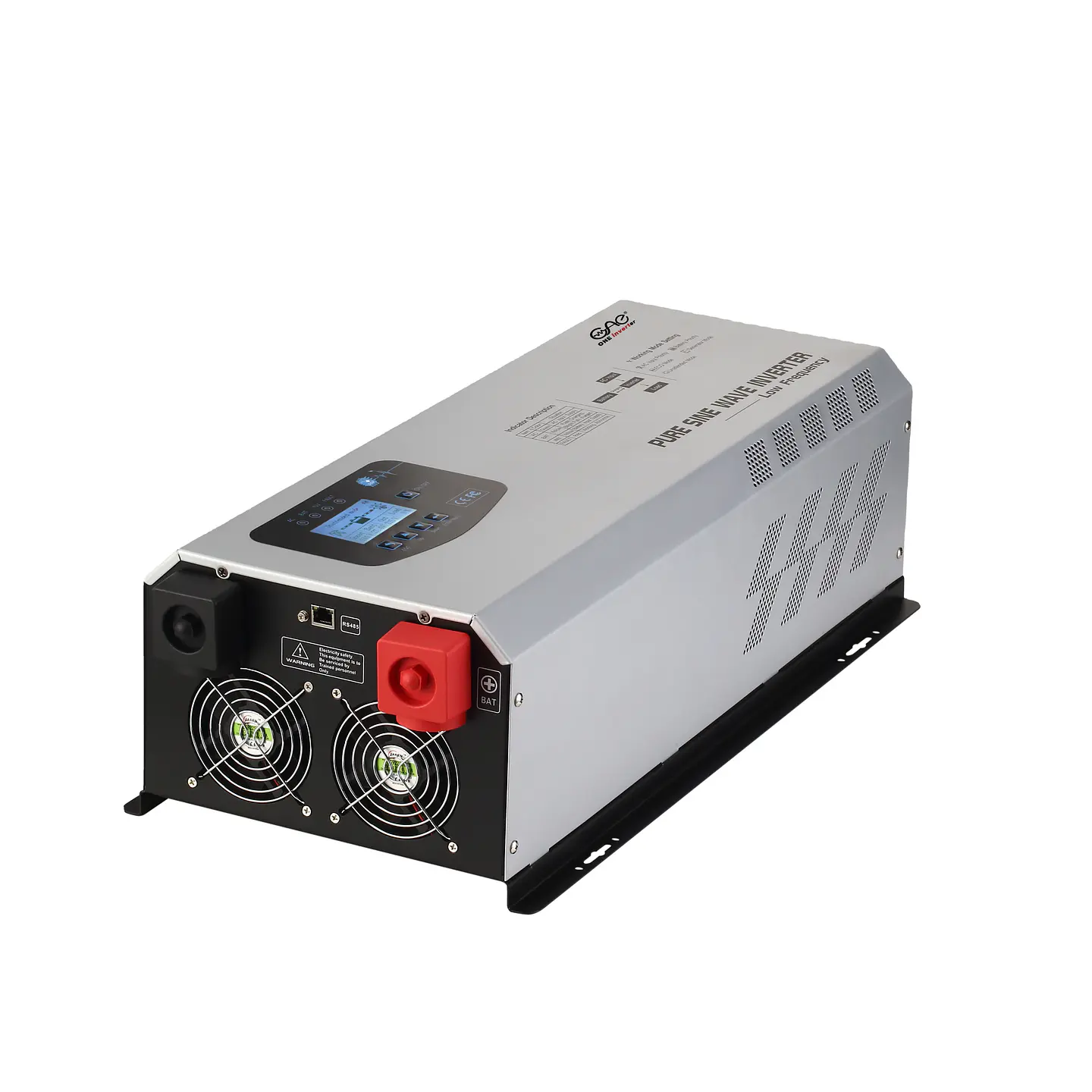

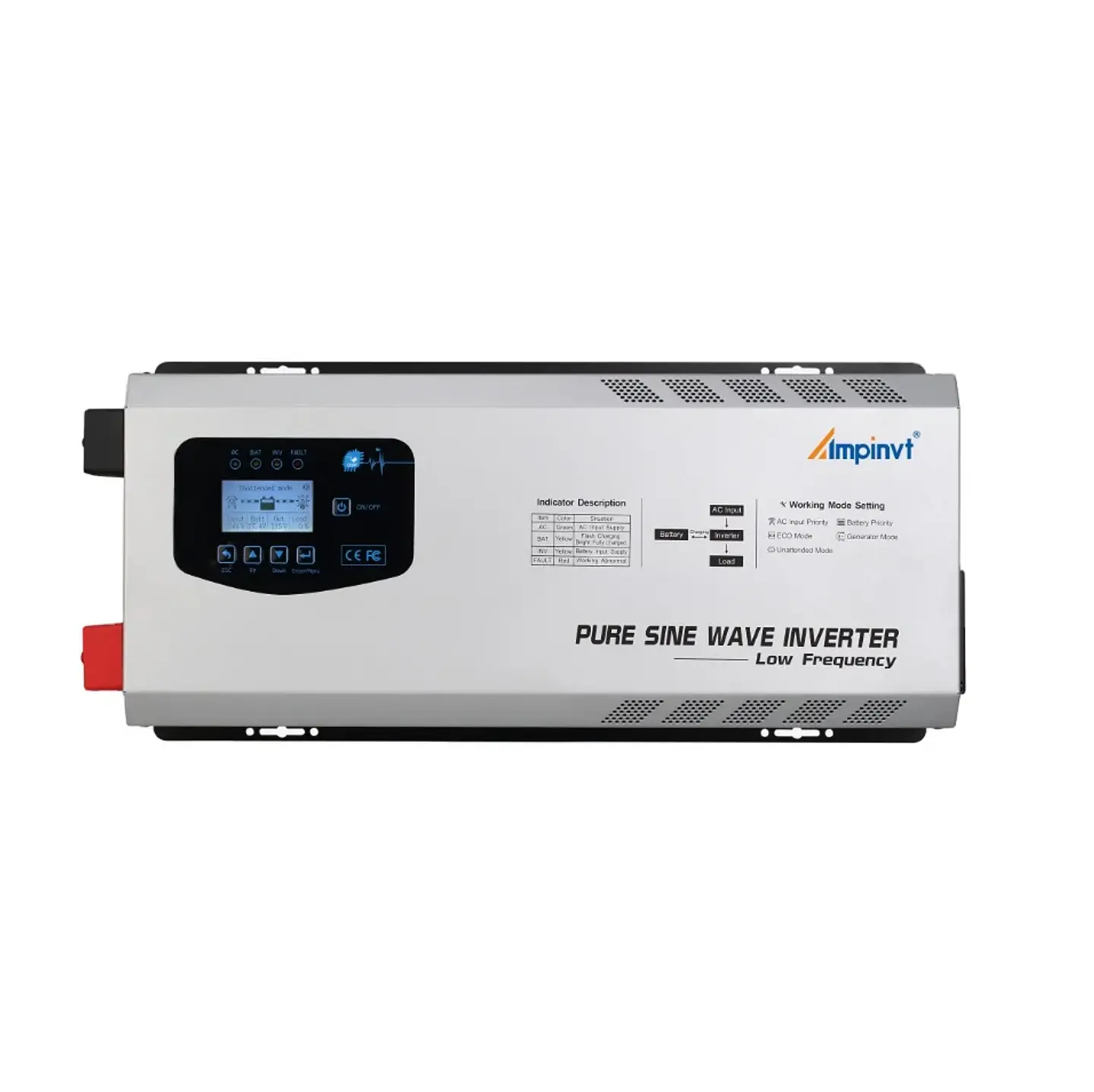

5KW 5000W Off Grid Solar Inverter 24/48V to 120V/240V Split Phase With AC Charger America Standard Power Inverter Home&RVS Use
Description
SPECIFICATIONS
Application: Pump,Motor,Industrial,Compressor,Automotive,Home,Air Conditioner
Brand Name: Ampinvt
Efficiency: 99%
Model Number: FT-502
Output Current: 35 A
Output Frequency: 60 Hz,50 Hz
Output Type: Single
Phase: Single Phase
Place of Origin: Guangdong, China
Type: DC/AC Inverters
Weight: 36
Products Description
Model | FT-102 | FT-152 | FT-202 | FT-302 | FT-402 | FT-502 | FT-602 | |||||||
Rated power | 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | |||||||
Surge power | 3KW | 4.5KW | 6KW | 9KW | 12KW | 15KW | 18KW | |||||||
AC Input & Output | ||||||||||||||
Voltage | 220VAC | |||||||||||||
Selectable Voltage Range | 165-275VAC (220VAC) | |||||||||||||
Frequency Range | 50Hz/60Hz automatic recognition | |||||||||||||
AC Voltage (BATT. Mode) | (DC Batt.mode)220vac±3% | |||||||||||||
Transfer Time | ≤4ms | |||||||||||||
Wave Form | Pure Sine Wave | |||||||||||||
Transformer type | Toroidal | |||||||||||||
Transfer efficiency | ≥85% | |||||||||||||
Battery | ||||||||||||||
Battery Voltage | 12V/24V | 12V/24V/48V | 24V/48V | |||||||||||
Type | Gel/SLA/AGM/Water/Lithium(lifepo4) Battery | |||||||||||||
DC Charge Voltage | 12~16VDC(12V)/20~32VDC(24V)/40~64VDC(48V) | |||||||||||||
Overcharge Protection | Battery voltage ≧16VDC (12V) ≧32VDC (24V) ≧64VDC (48V), stop charging after 60s alarm | |||||||||||||
AC Charger | ||||||||||||||
Maximum Ac Charge Current | 35A (adjustable) | |||||||||||||
Working mode | ||||||||||||||
01 mode | AC mains priority mode | |||||||||||||
02 mode | ECO mode | |||||||||||||
03 mode | DC battery priority mode | |||||||||||||
04 mode | Generator mode | |||||||||||||
05 mode | Unattended mode | |||||||||||||
Communication Port | ||||||||||||||

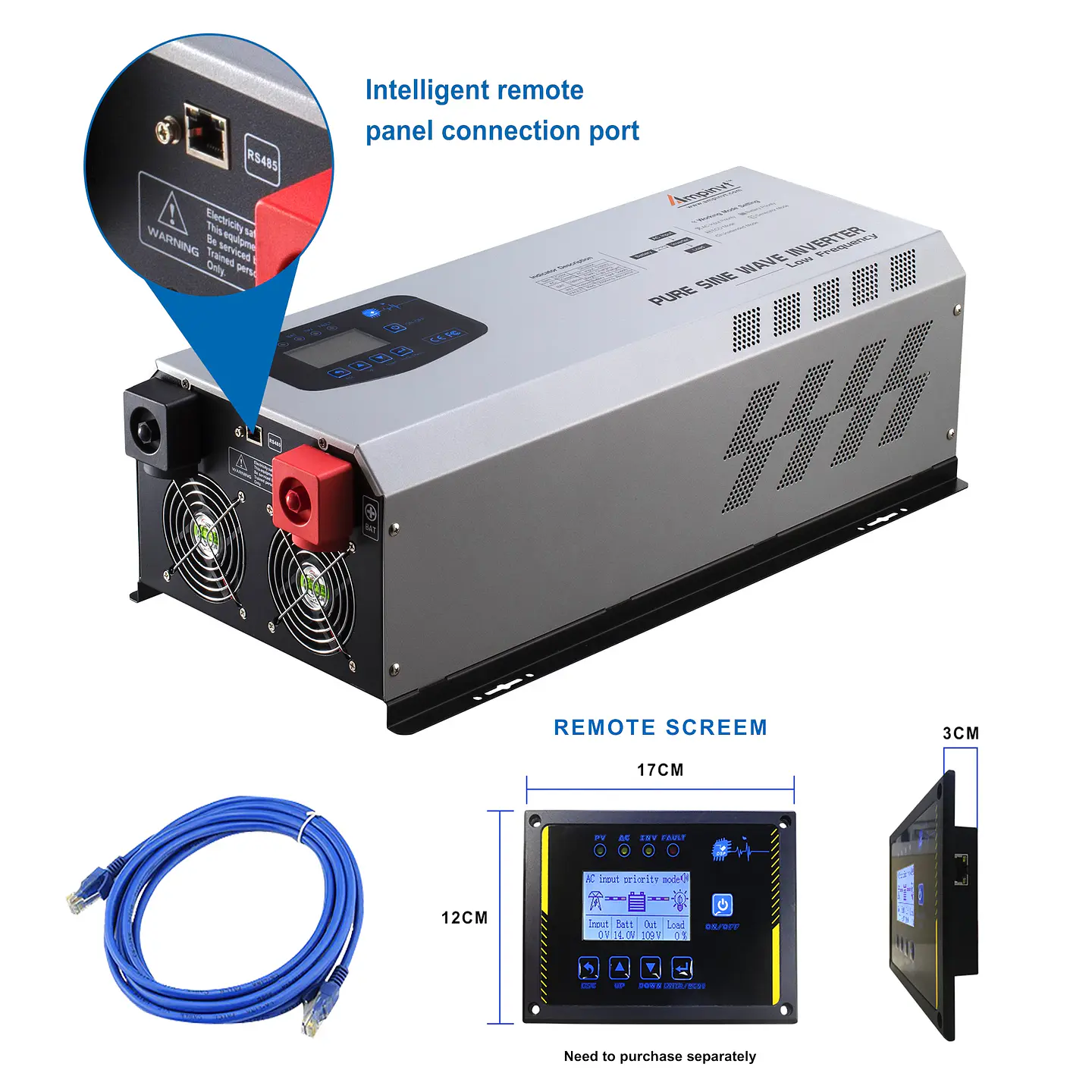

Type | RS485, available for wifi box & external control screen | |||||||||||||
Physical | ||||||||||||||
Dimension, D*W*H(MM) | 600*380*170 | 780*380*280 | ||||||||||||
G.W.(KGS) | 15 | 17 | 19 | 21 | 31 | 33 | 35 | |||||||
Environment | ||||||||||||||
Humidity | 0~95%（NO CONDESNSATION) | |||||||||||||
Operating Temperature | 0~60℃ | |||||||||||||
Storage Temperature | 0~60℃ | |||||||||||||
*Product Specifications Are Subject To Change Without Further Notice | ||||||||||||||
