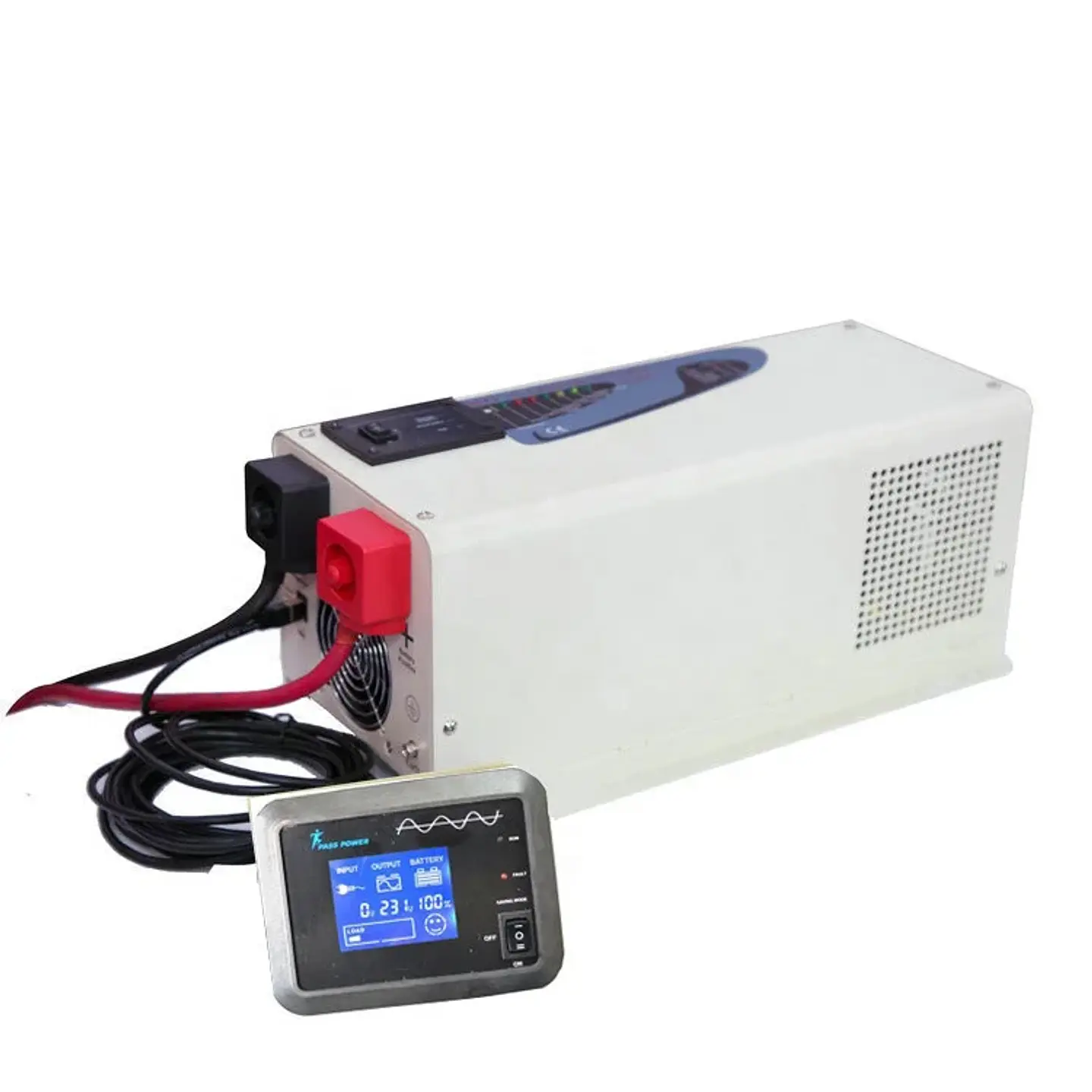

CE ROHS CB SAA 12 V 24V 48V DC 110V 230VAC Single Phase Industrial Frequency Ups Sinus Power Inverter Charger 3000w
Description
SPECIFICATIONS
Application area: Home/Office/Caravan/Yacht/etc.
Brand Name: PASS POWER
Customized support: OEM,ODM
Efficiency: 90%,90%
Grid type: Off-grid type
Item Name: 3000w inverter with charger for solar system
Model Number: PS-3000w
Output Current: 13.04A
Output Frequency: 50Hz/60Hz
Output Type: Single
Output waveform: pure sine wave
Peak power: 9000W
Phase: Single Phase
Place of Origin: Jiangsu, China
Size: 470*220*180mm
Start: Soft-start
THD: <3%
Type: DC/AC Inverters
Warranty: two year warranty
Weight: 23KG/PC
TYPE:PS-3000W
- 3000 Watt continuous pure sine power
- 9000 watt peak power for 20s
- Built in 75A smart battery charger with 7 selectable battery type settings
- Auto gen start feature. Smart charger 75 Amp
- Marine and industrial grade
The 3000 watt 12 volt low frequency Power inverter charger transforms DC (direct current) power, stored by batteries, into AC (alternating current) electricity that can be used to run your various tools and appliances. This inverter also has a built in AC-to-DC battery converter charger, which allows users to recharge their battery bank from an AC source such as a fuel-powered generator, shore power or a regular outlet at home. The built in battery charger features a seven type battery selector and 4 stage charging, for safely and effectively charging your battery source. Use this product for renewable solar, off-grid, mobile and emergency backup power applications anywhere that uses 220 or 230 volts of alternating current.
1. Pure sine wave combined inverter, automatic charger and commercial power battery automatic switch
2. Output pure sine wave form, input and output totally separated design, high efficiency 88%--90%, inverter power
saving mode .
3. 4-step progressive charging 7 battery type selector
4. Multiple protection functions, equipped with Ac and Dc input high & low voltage protection, over-current protection,
overload protection, temperature protection, output short circuit protection and so on
5. Containing 4-step charging modes, charging current automatic adjustment
6. Bult- in Ac bypass replay ( < 10ms), the actual realization of Ac power output
7. Ultra-wide commercial power input voltage
8. LED display and the RJ11 standard interface
9. Load and temperature control fan start
10. Hybrid power working( solar, battery, commercial power and generator switch freely)

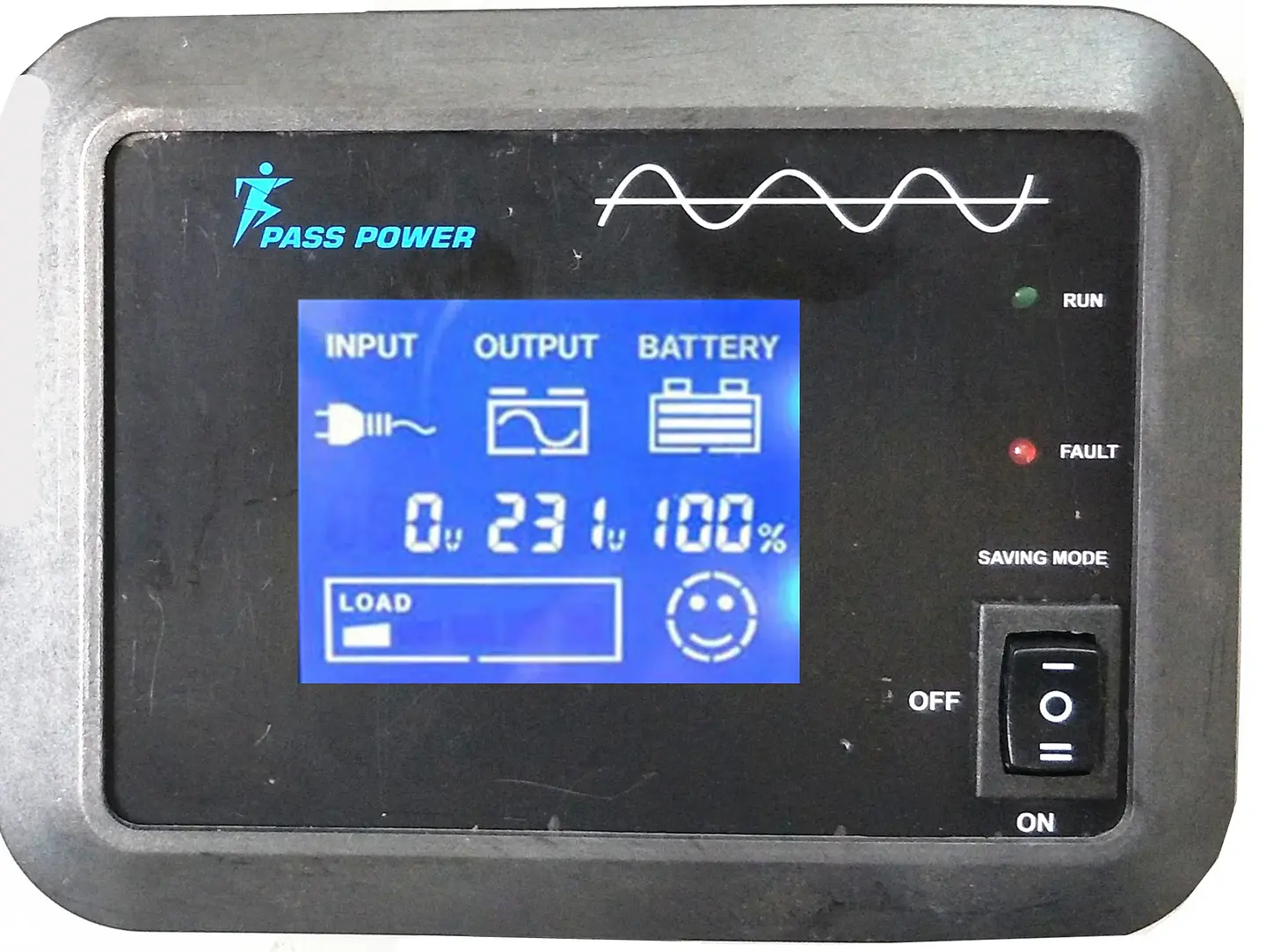

11. Options: Remote viewing LCD digital control panel / RJ45 interface; Priority inverter mode; No battery start function
Technical data for 3000va 12 VDC 230VAC Power Inverter Charger 3000w for solar system
|
Model |
PS3000-212
|
|
Output power |
3000W |
|
Impact power |
9000W (within 10s) |
|
DC input voltage |
12VDC |
|
Output voltage |
230VAC±5% |
|
Output frequency |
50/60HZ±0.5% |
|
Output wave form |
Pure sine wave ( THD< 5 % ) |
|
Power factor |
0.1~1 |
|
Max efficiency |
90% |
|
Standby power loss |
<10W( Saving power mode ) |
|
Switching time |
<8ms |
|
AC Input voltage range |
190~245VAC |
|
DC Input voltage range |
10.0~16.0 |
|
DC charging current |
75A |
|
Fault indication |
LED red light on |
|
Remote switch (optional ) |
RJ11-LED or RJ45-LCD |
|
Work temperature |
-20~50℃ |
|
Workhumidity |
20~90%RH |
|
Storage temperature |
-30~70℃ |
|
Cooling |
Temperature controlled cooling fan |
|
Weight(KG) |
23kgs |
|
Size(mm) |
470*220*180(L*W*H) |
|
Applications |
Car, yacht, solar energy systems, mobile devices, industrial control, power tools, Home Office and so on. |

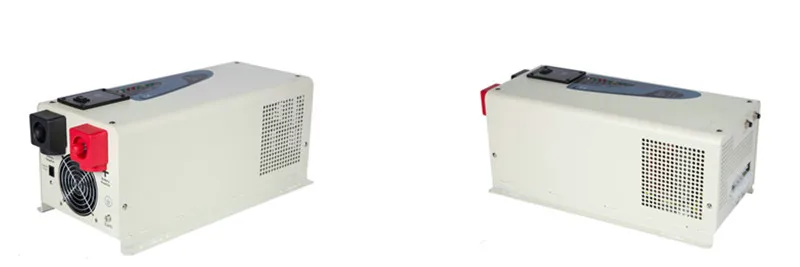

Detailed picture for 12 VDC 230VAC Single phase Inverter Charger 3000w for solar system

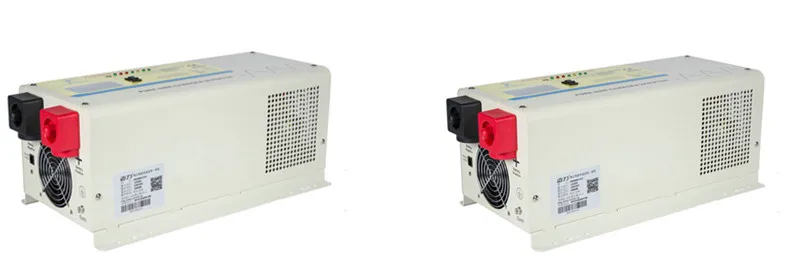

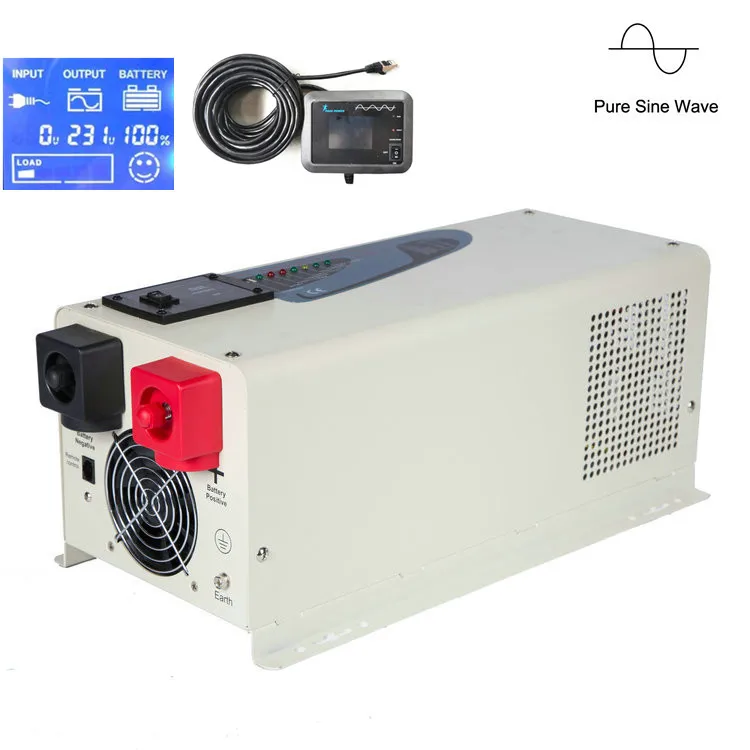

Type A: 3000va power inverter with charger,without LCD screen

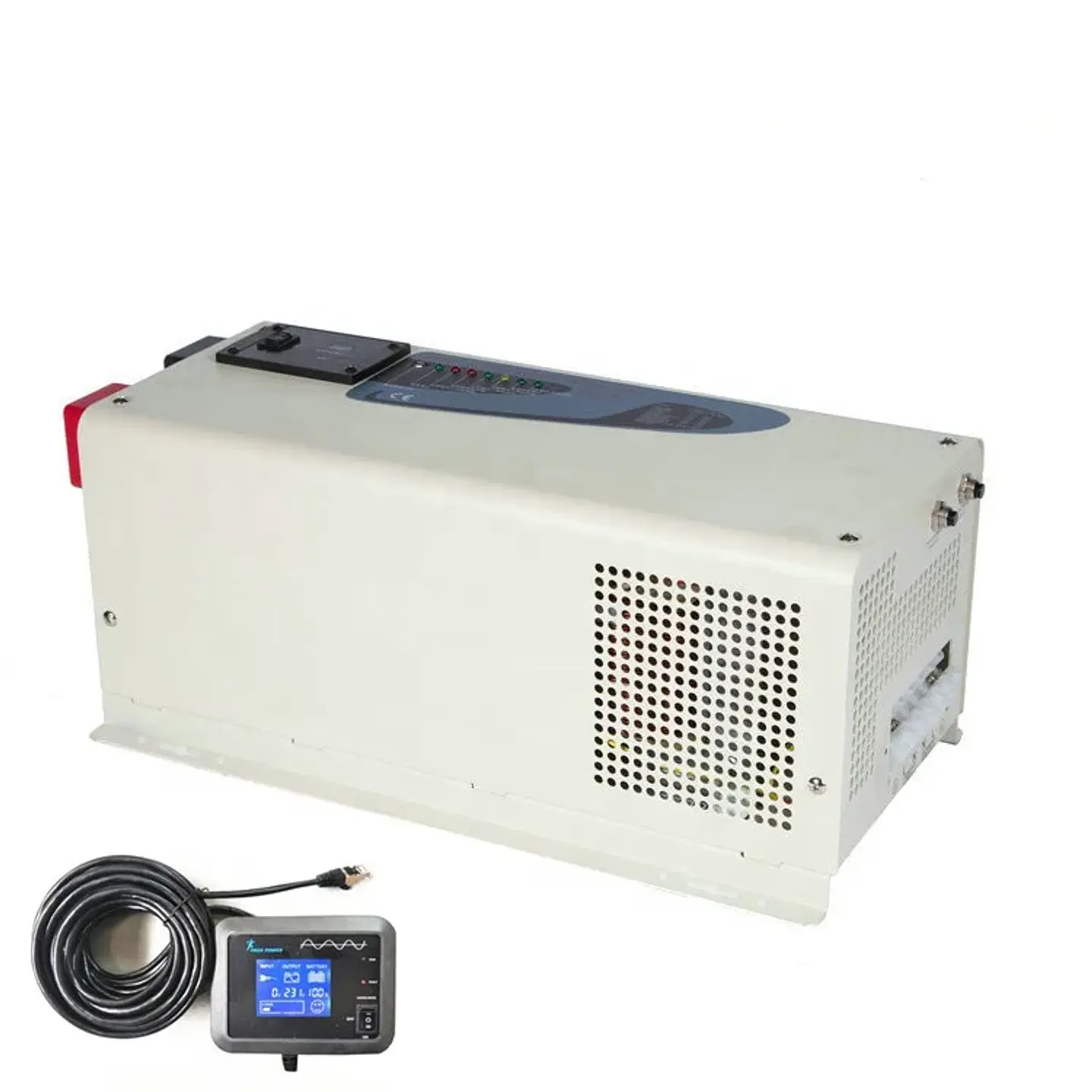

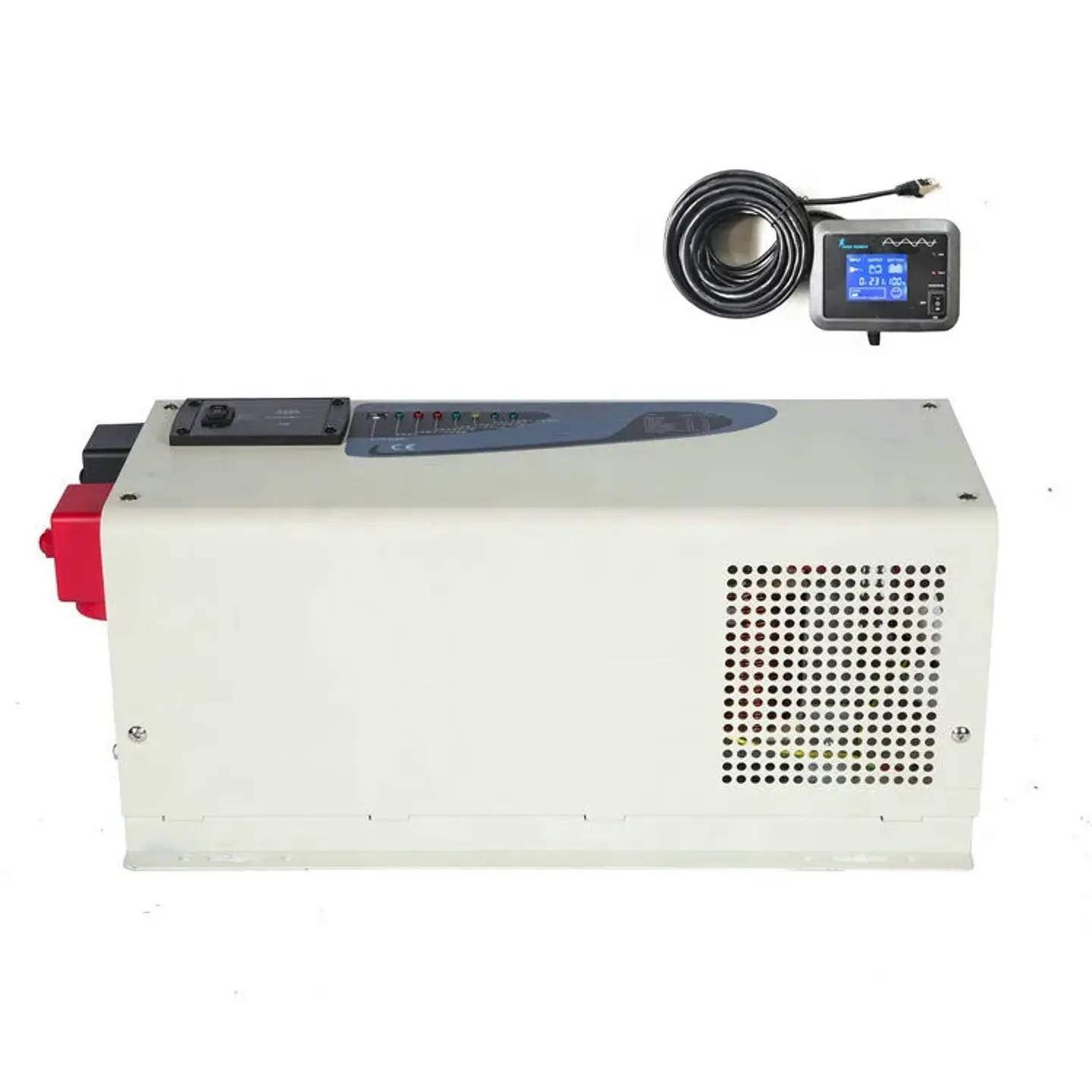

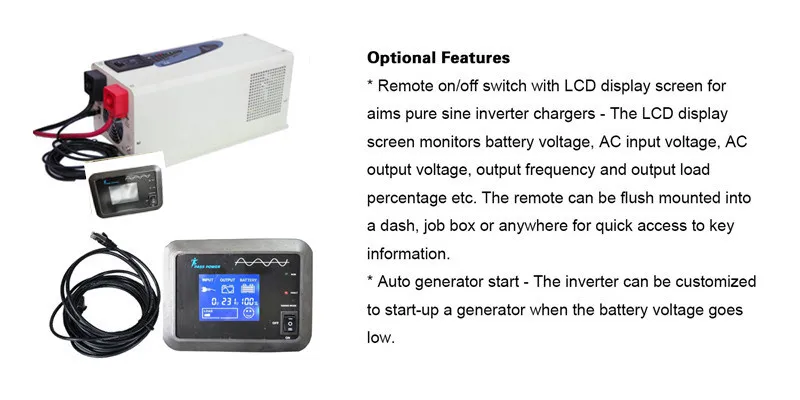

Type B: 3000va power inverter with charger,with LCD screen on the top of the machine (LCD,plus US$30)

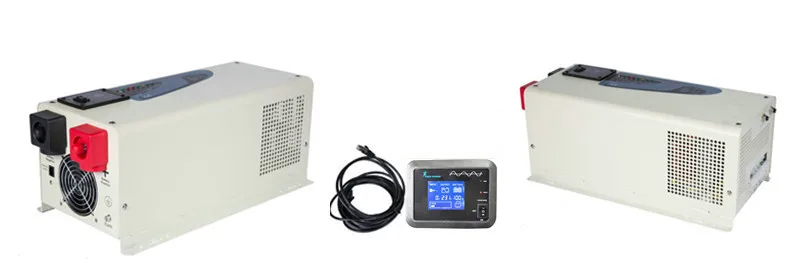

Type C: 3000va power inverter with charger,with LCD screen seperate (LCD,plus US$30)

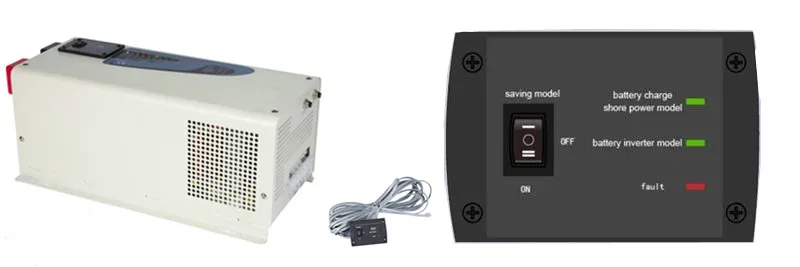

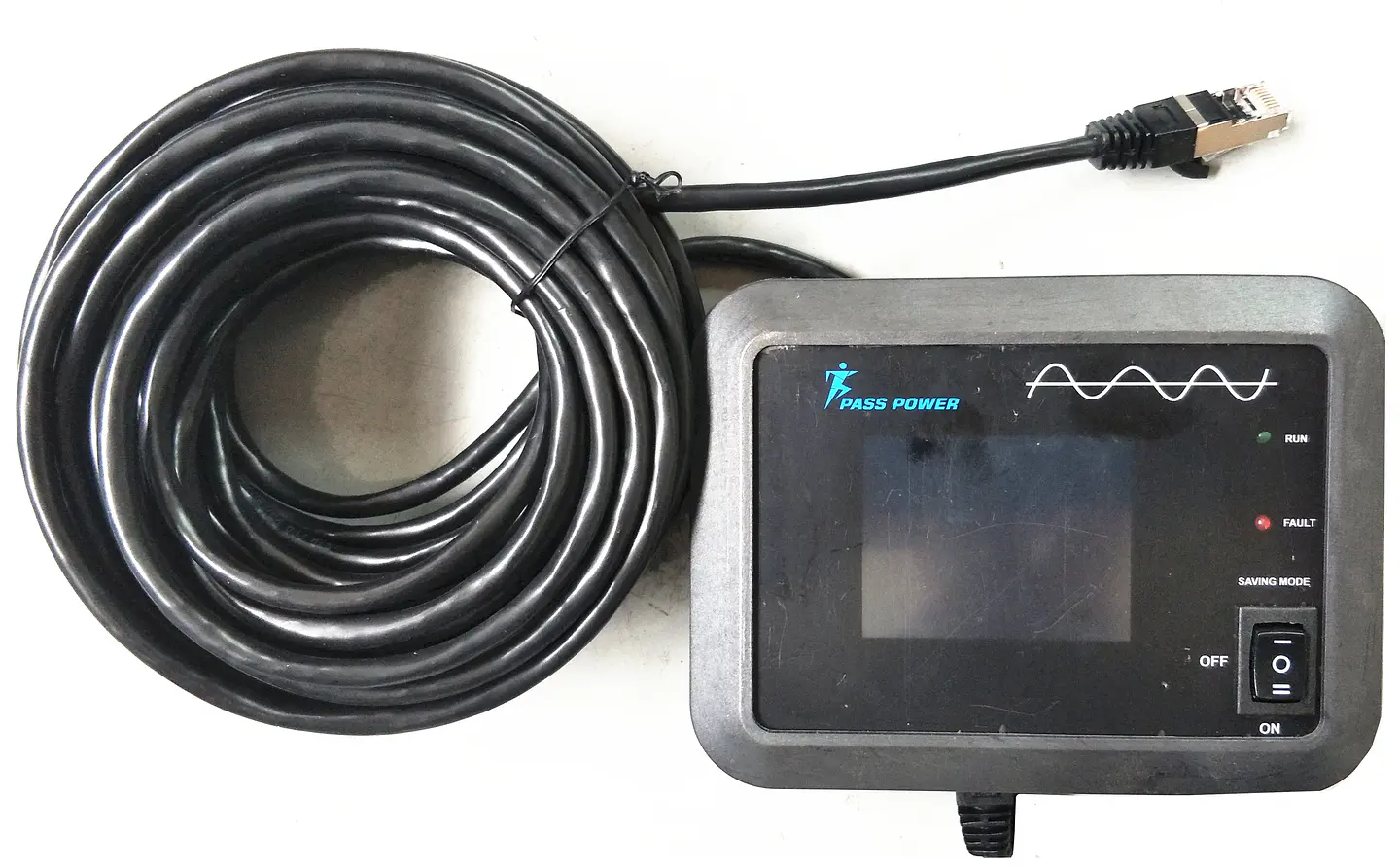

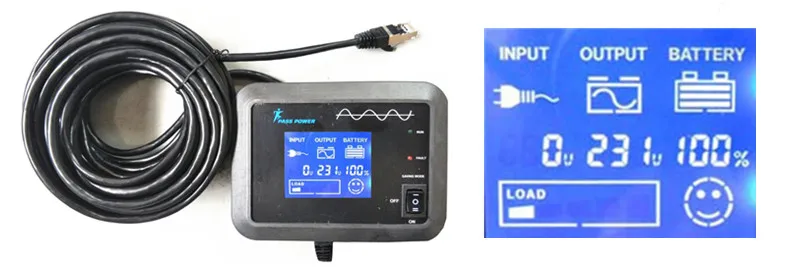

LED Remote Control (Free configuration)

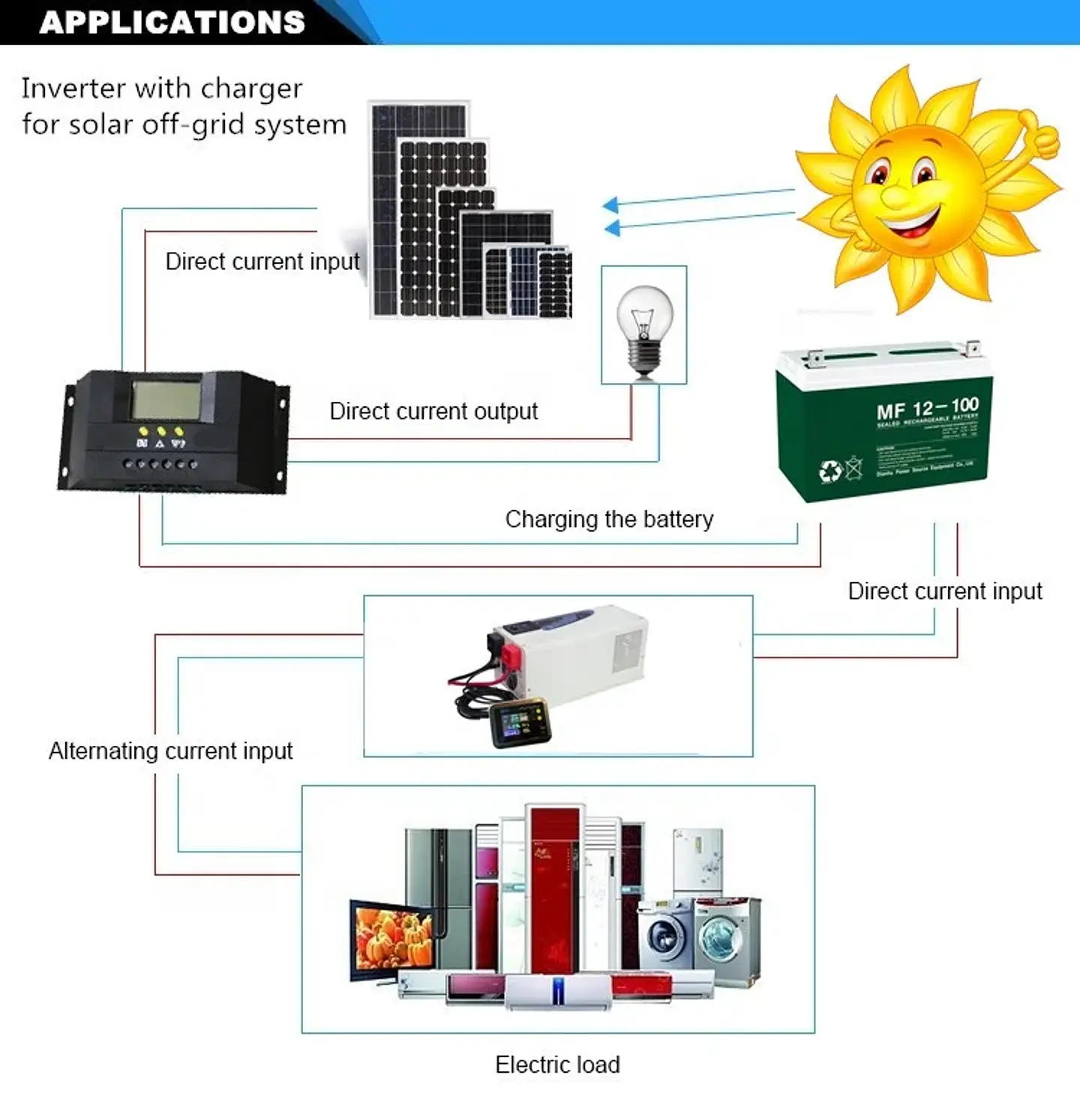

Application for 12 VDC 230VAC industrial frequency ups sinus Power Inverter Charger 3000w
Inverter 3000w widely used in Car,Yacht,Solar energy systems,Mobile devices,Industrial controls,Power tools,Home office and so on.

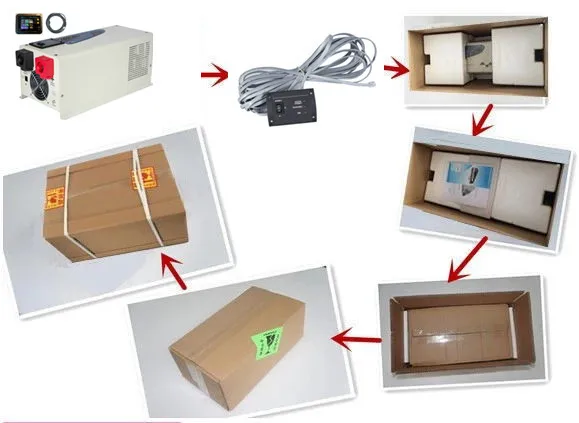

Package for inverter charger 12v 230v 3000w
Packing Method: by Standard Carton box.with bubbles outside and foams inside for protection
Packing Size: 1PC in 1 Carton; 600*340*330mm/pc; Packing Weight: 27kg/pc
Package contain: 1pc 3000w inverter + 2 cables + English user manual + LCD display screen
Delivery for inverter charger 12v 230v 3000va
A: Express: FedEx/DHL/UPS/TNT/EMS/SF,etc.
B: By air transport: when you order more than 100KG,which will be more economical than express.
C: By sea transport: FOB/CFR/CIF Shanghai,Ningbo,Shenzhen departure sea port,China.
D: By customer's designated shipping agent/forwarder.
E: Delivery goods with 7-30 days after receive the deposit for bulk order,sample order:2-3 days
Pass Power Service
1. Samples Samples are Available for Testing and Market Test.
2. Warranty of Pass power Products Pass Power provides 24 monthes warranty
3. Guides and After-service Consultancy Pass Power Team will offer these guides below.
A. Need an Accessory B. Products Repair C. Power Problems to Solve? D. Power Protection Solutions, etc.
4. OEM Service
