Seplos V4 DIY LiFePO4 Battery Case 48V 16S 200A BMS Smart 51.2V 280ah BT LCD 2A Active Balancer Assemble Box for Home Energy
Description
SPECIFICATIONS
Brand Name: BATTERY QUEEN
Capacity: 280AH 300AH 320AH
High-concerned chemical: none
In parallel: 4pcs in parallel
Max Voltage: 51.4V
Model Number: MASON-206-16S
Origin: Mainland China
Package: Yes
Power: 15KW 30KW
Rated Voltage: 48V
Series: 16S
Type: Battery Storage Box
V4 -280L 48V 280AH-320AH Battery DIY Kits
Seplos V3 16S 200A Smart BMS
2A Active Balancer
Colour Touch Screen
DC Breaker
Battery pack wiring (Pack to pack)
Stack the battery packs onto the base. (Maximum 4 packs can be stacked.)
Connect cables between packs.
Connect cable with inverter

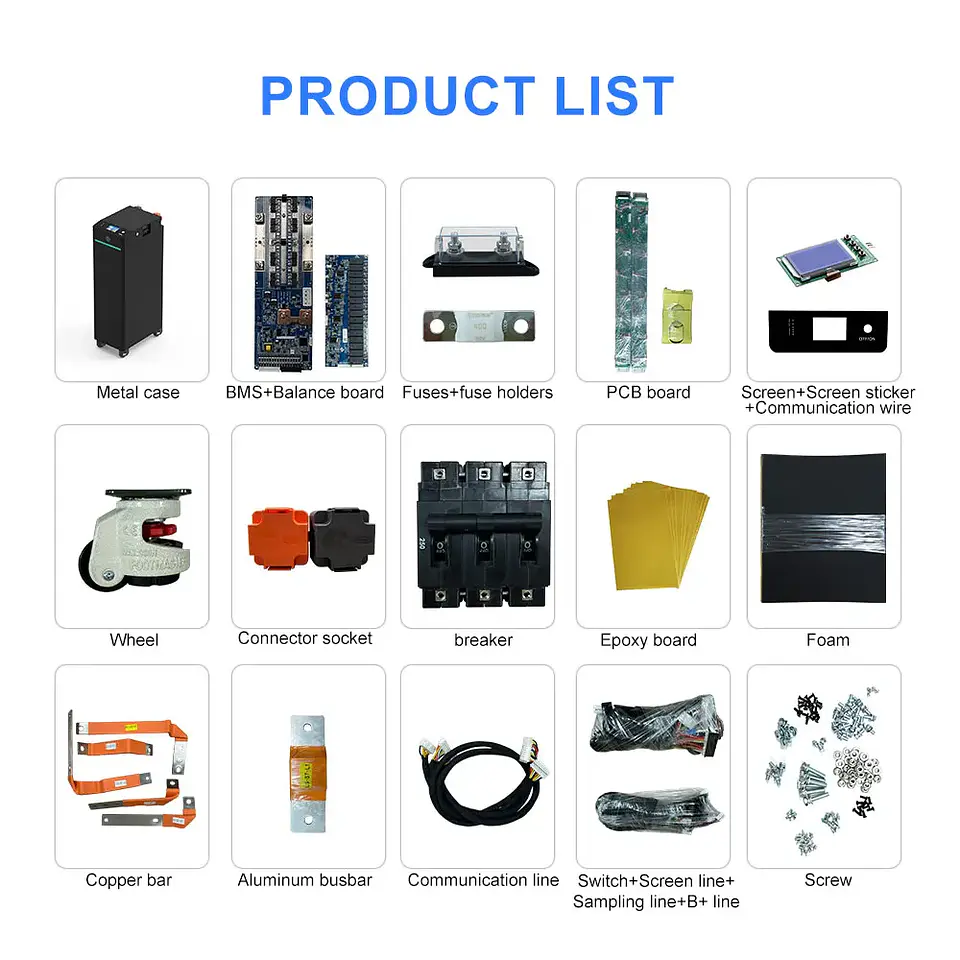

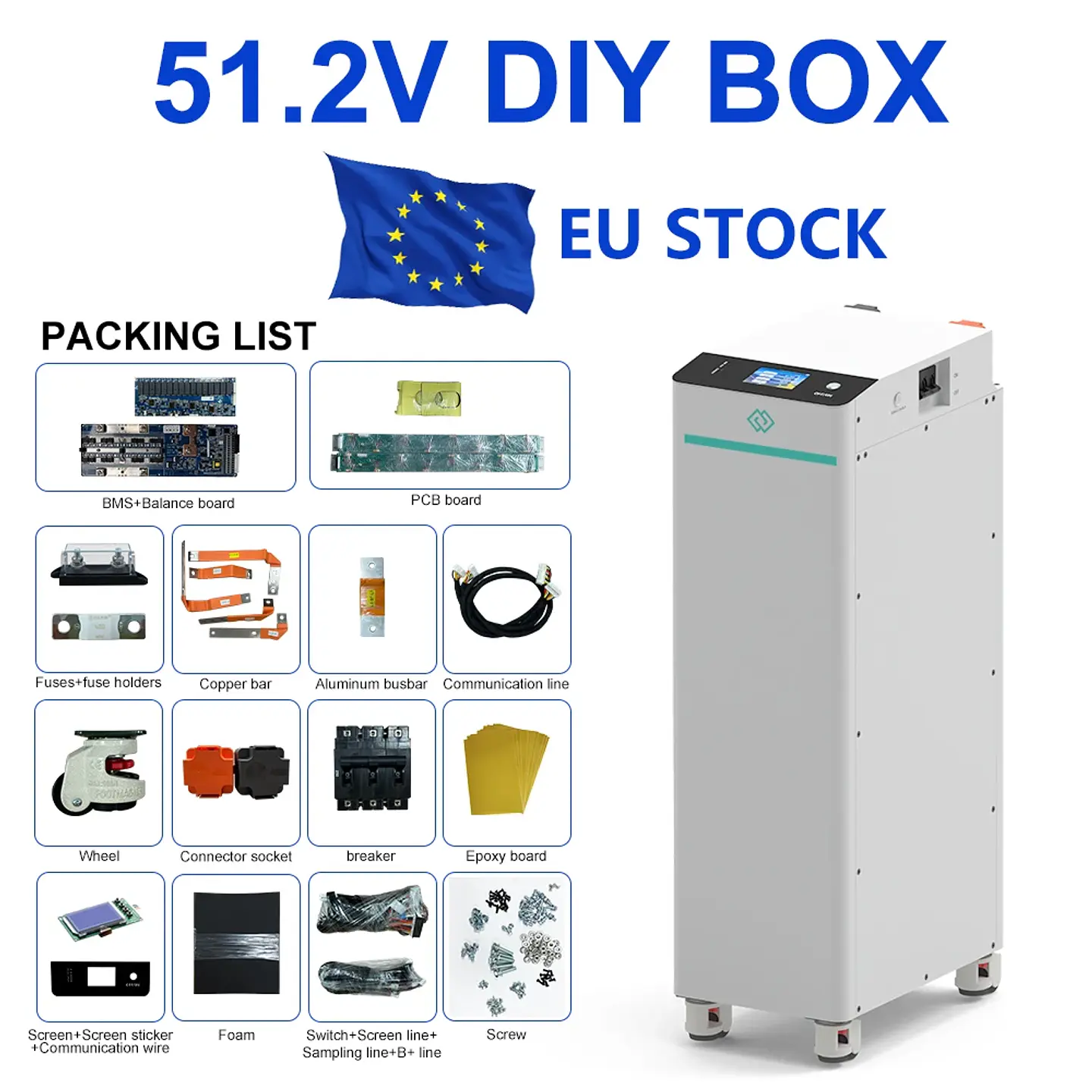

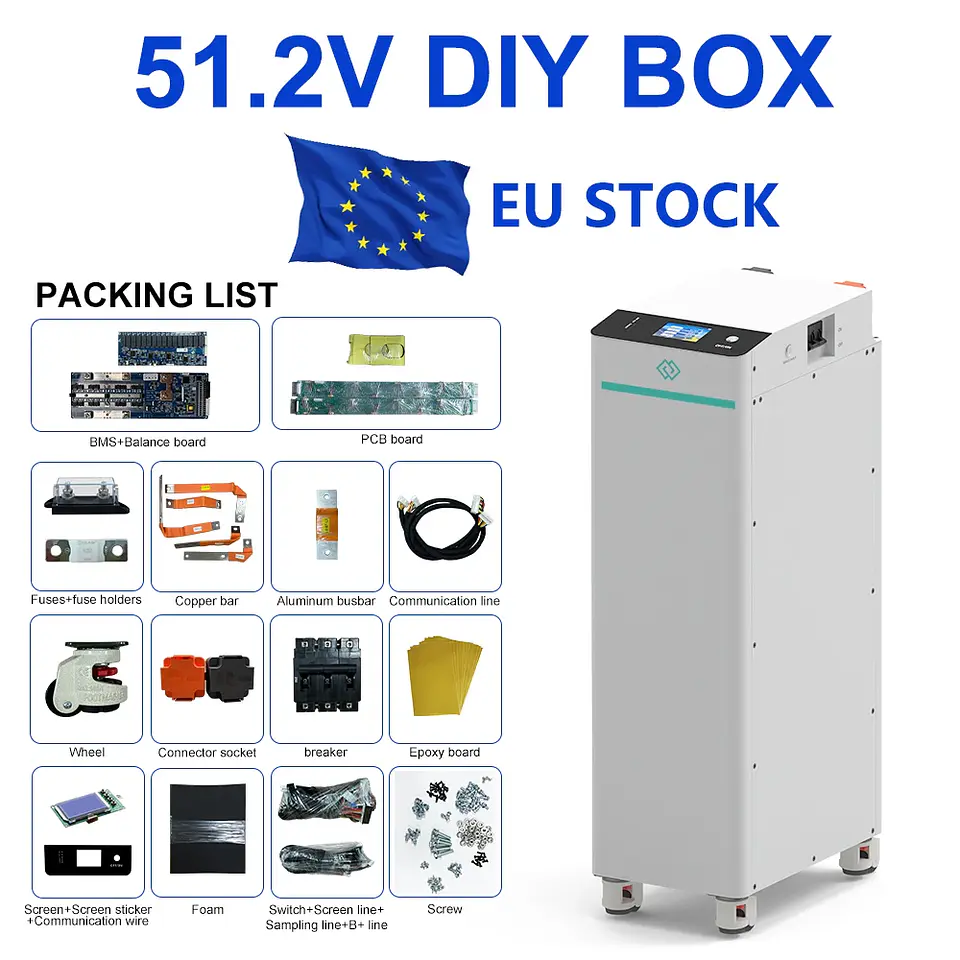

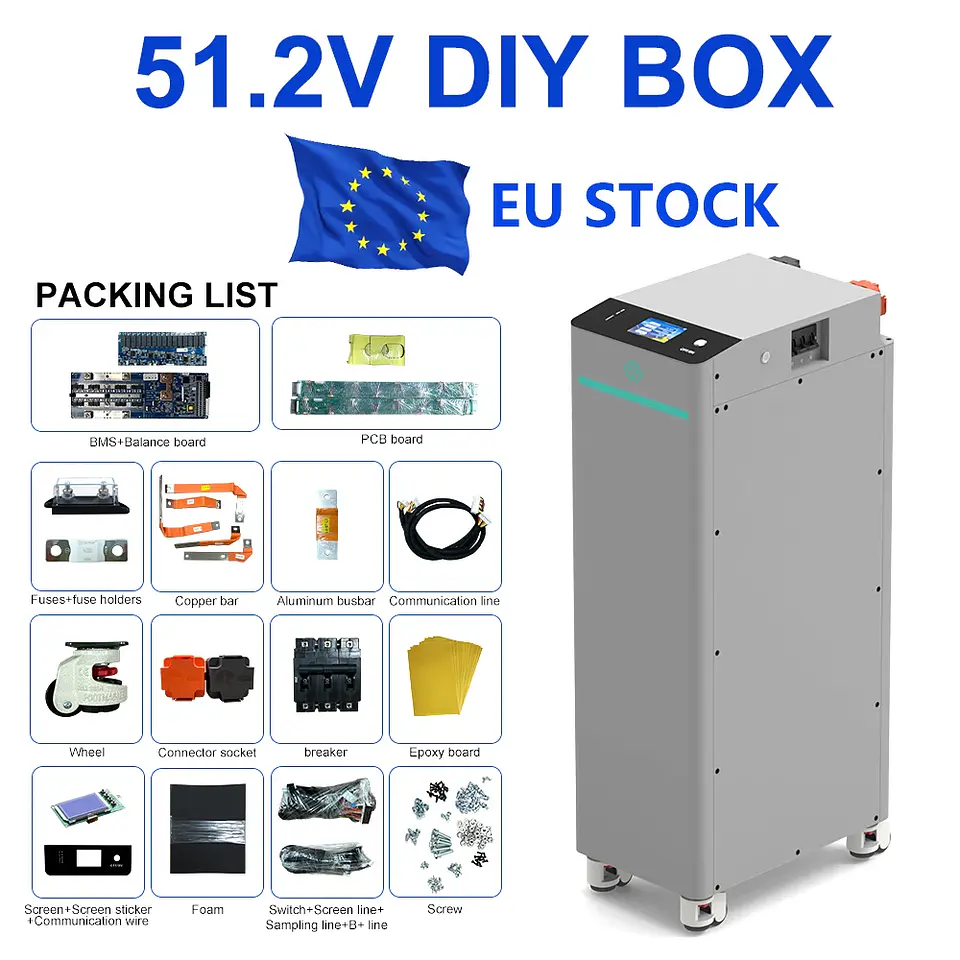

Packing List (Without Cells)
1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
1 * 48V 200A 16S BMS
1 * 58V 400A Fuse
4 * Handle
2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock
1 * LCD Screen
1 * LCD Screen Sticker
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
2 * Battery Terminals (P+ Terminal and P- Terminal)
Other components includes
6 * Copper bus bars (BMS connection)
15 * Aluminum bus bars (Cell connection)
10 * Epoxy sheet (Between cell and the case)
26 * EVA Tape (Between cells)
1 * PC sheet (Top cover)
Screws Details:
12 * Phillip Hex M4 * 8mm (PCB board fix)
9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
12 * Phillip Pan M5 * 10mm (Latch fix)
16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
8 * Phillip Round M5 * 10mm + Washer
