48V LiFePO4 Battery Pack 100–600Ah — 200A BMS Solar Storage

Color
Ships From

Description

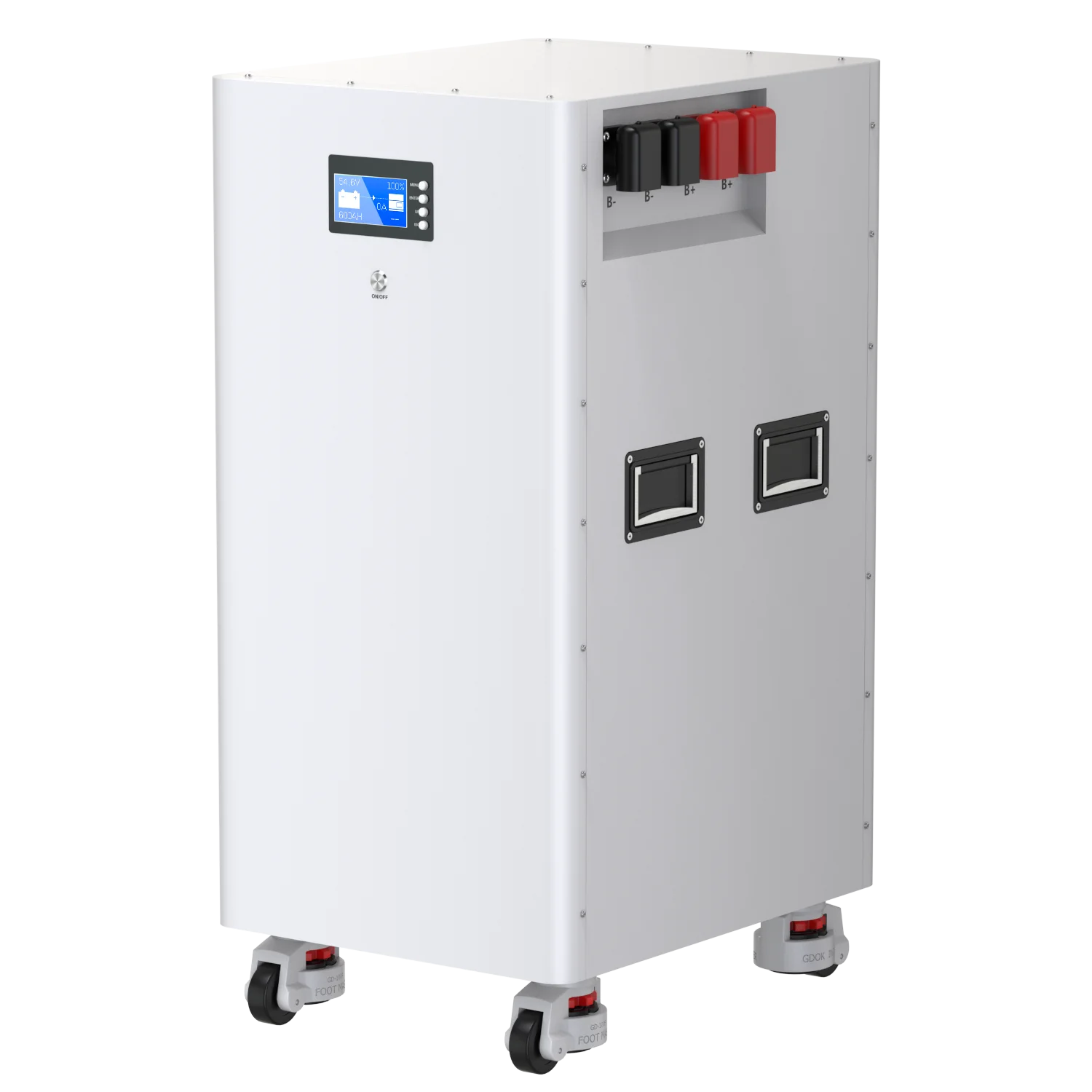

This 48V LiFePO4 battery is a solar storage pack in 100Ah, 300Ah, or 600Ah sizes, with a smart 16S 200A BMS, Bluetooth monitoring, and a 10-year warranty.

Key specifications

  • Nominal voltage: 51.2V (a 48V system)
  • Capacity options: 100Ah (5kWh), 300Ah (15kWh), and 600Ah (30kWh, listed as 30720Wh)

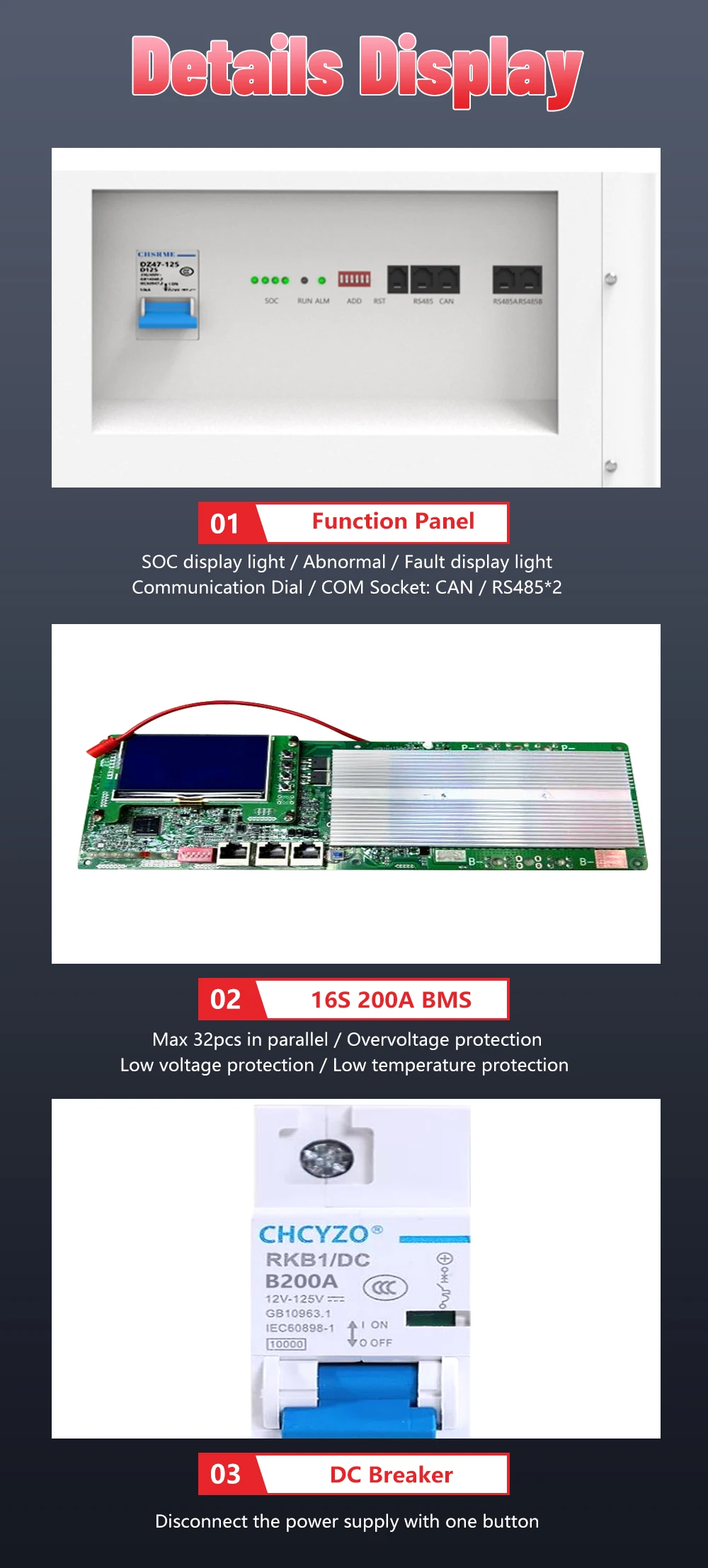

  • BMS: smart 16S 200A with Bluetooth, plus an LED touch screen display
  • Maximum charging and discharging current: 200A, as listed
  • Cycle life: more than 6,000 cycles, as listed

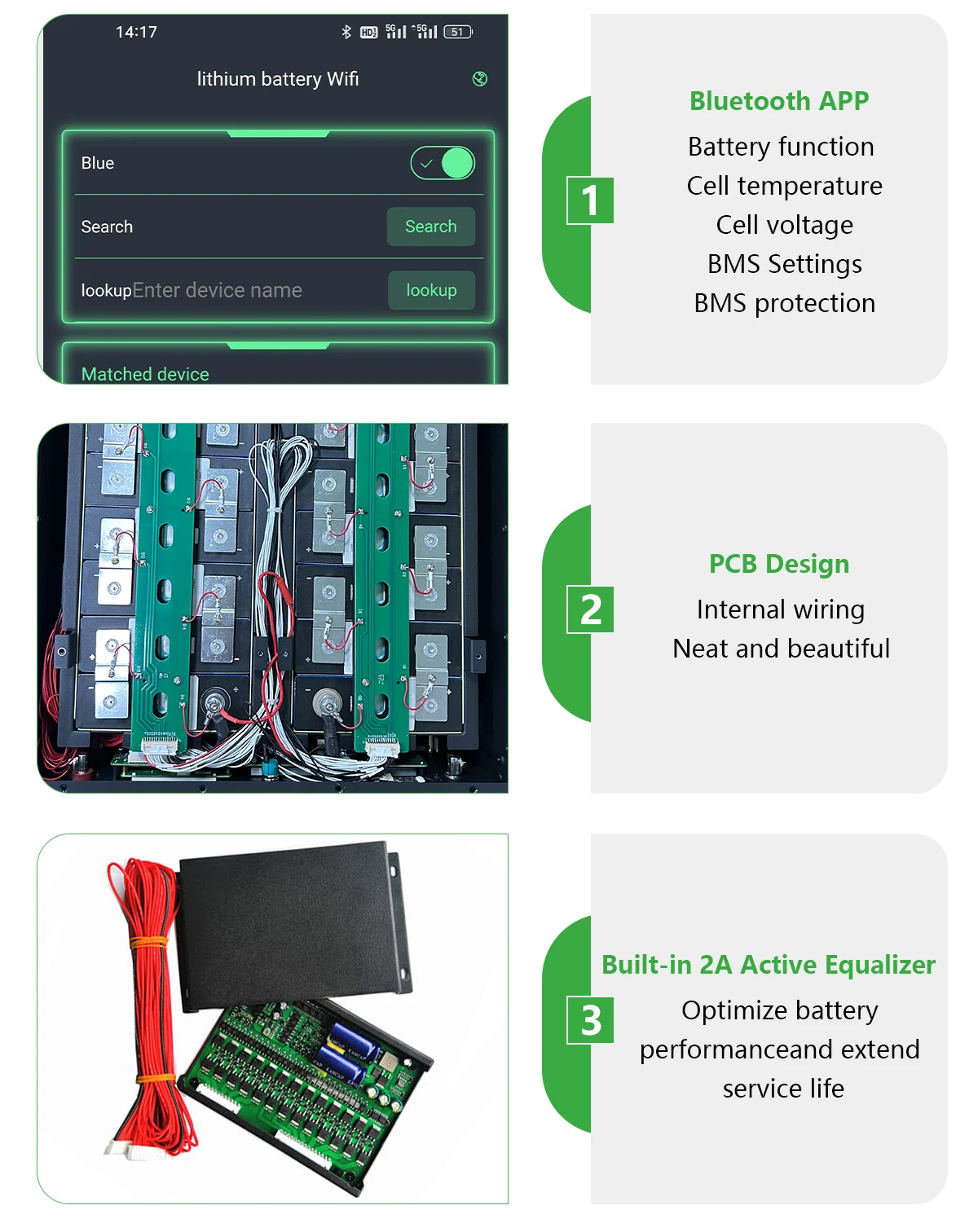

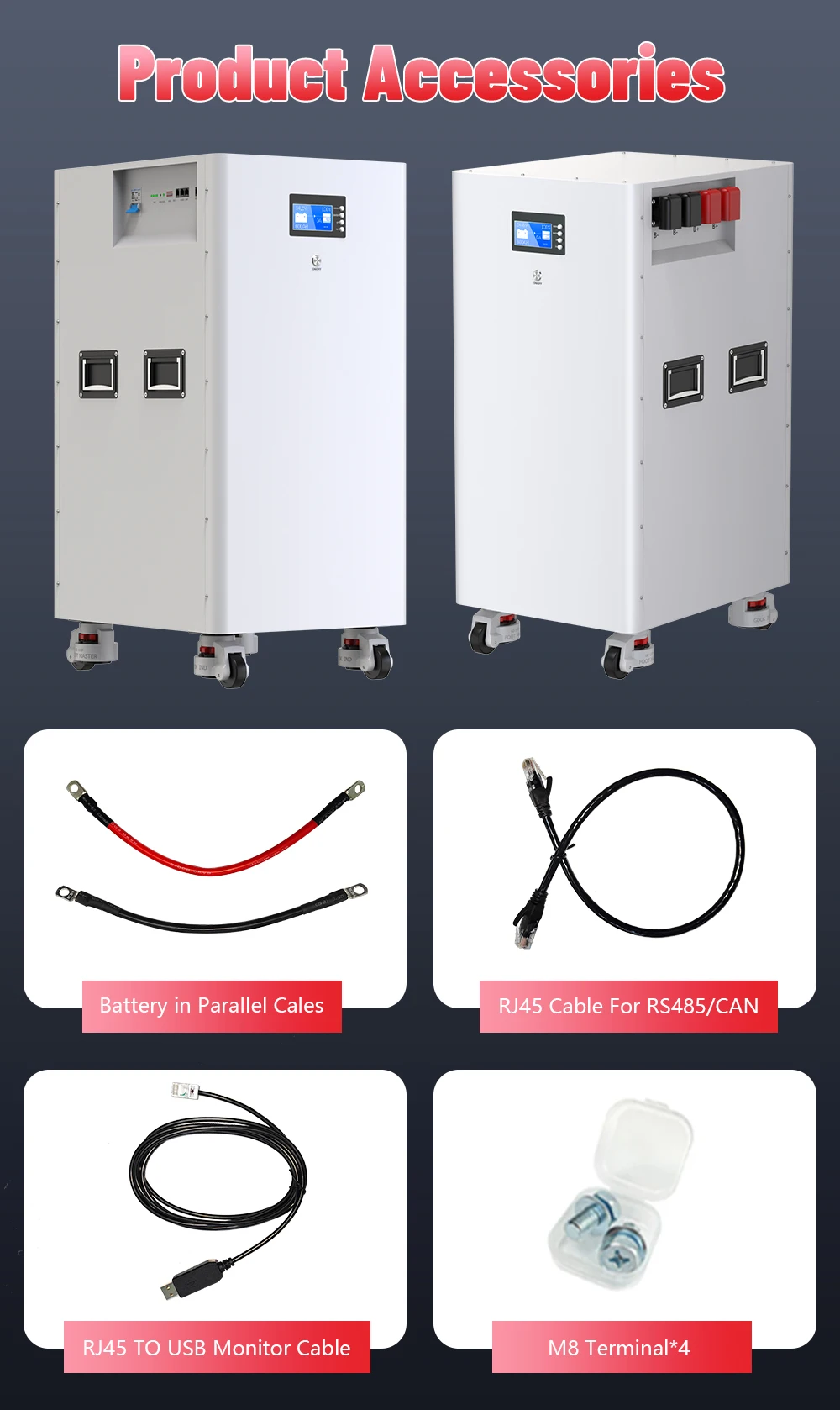

  • Monitoring: Bluetooth app and an RJ45-to-USB PC monitor showing voltage, temperature, state of charge, state of health, cycles, and capacity per cell
  • Balancing: built-in active equalizers (JK), as listed

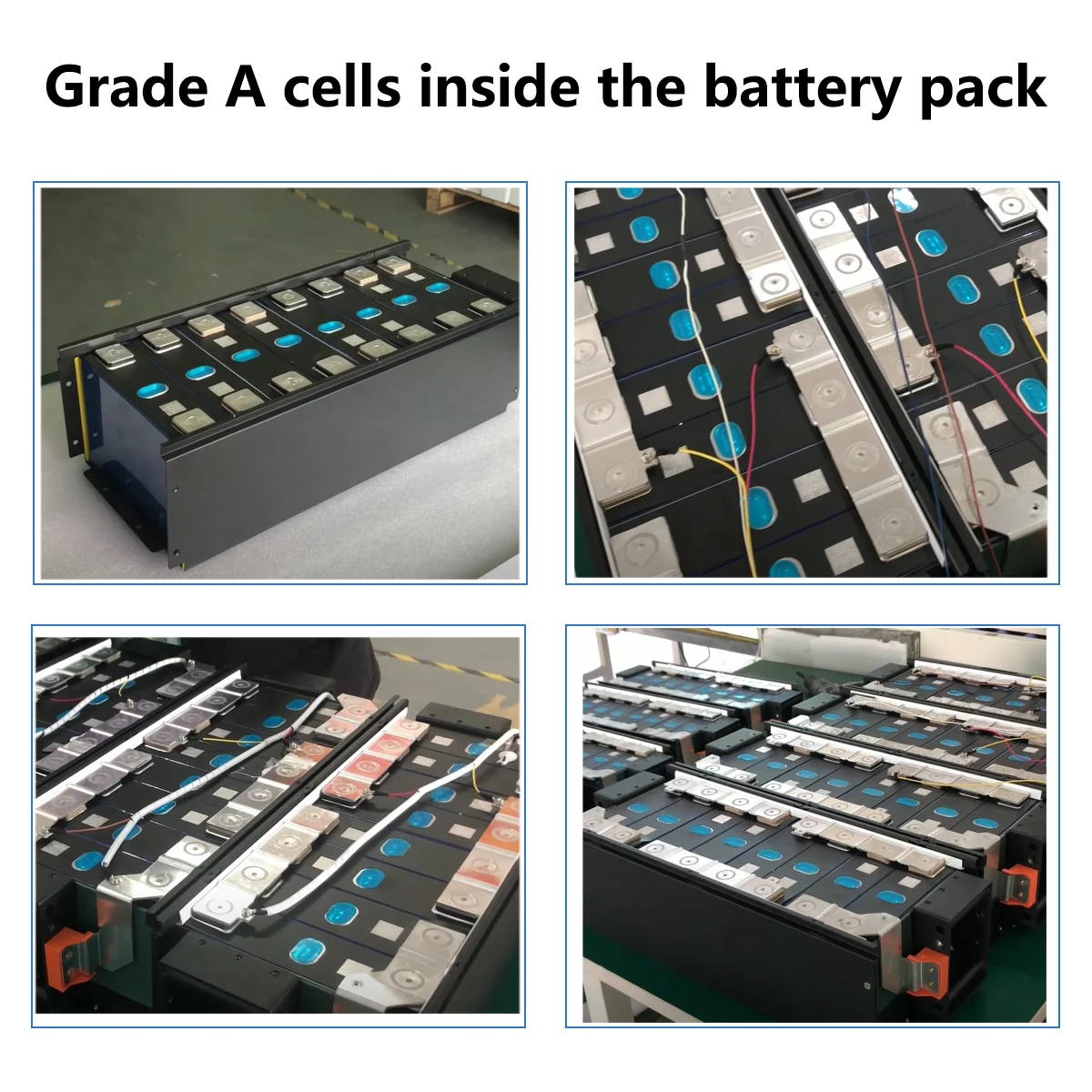

  • Cells: new Grade A cells, listed as CATL, EVE, or Lishen, with cell internal resistance under 0.05 ohm and voltage difference under 0.5mV, as listed
  • Warranty: 10 years, with free replacement of new parts within ten years, as listed

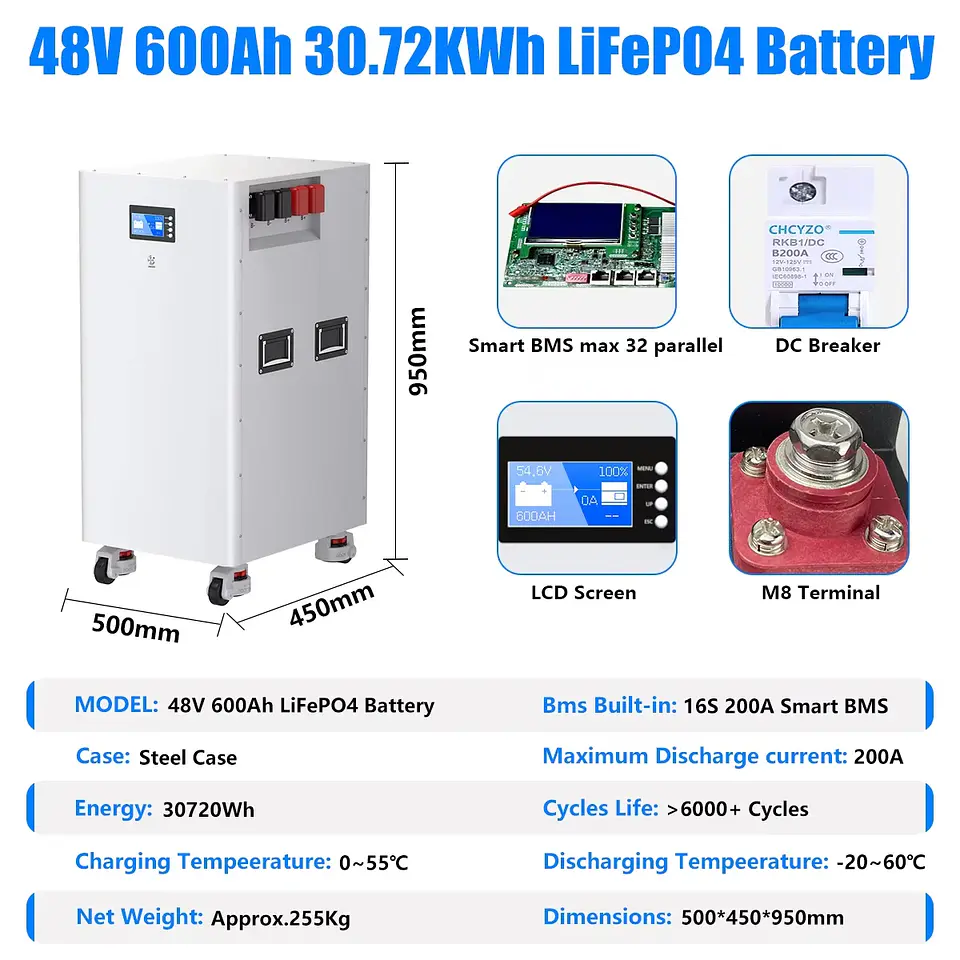

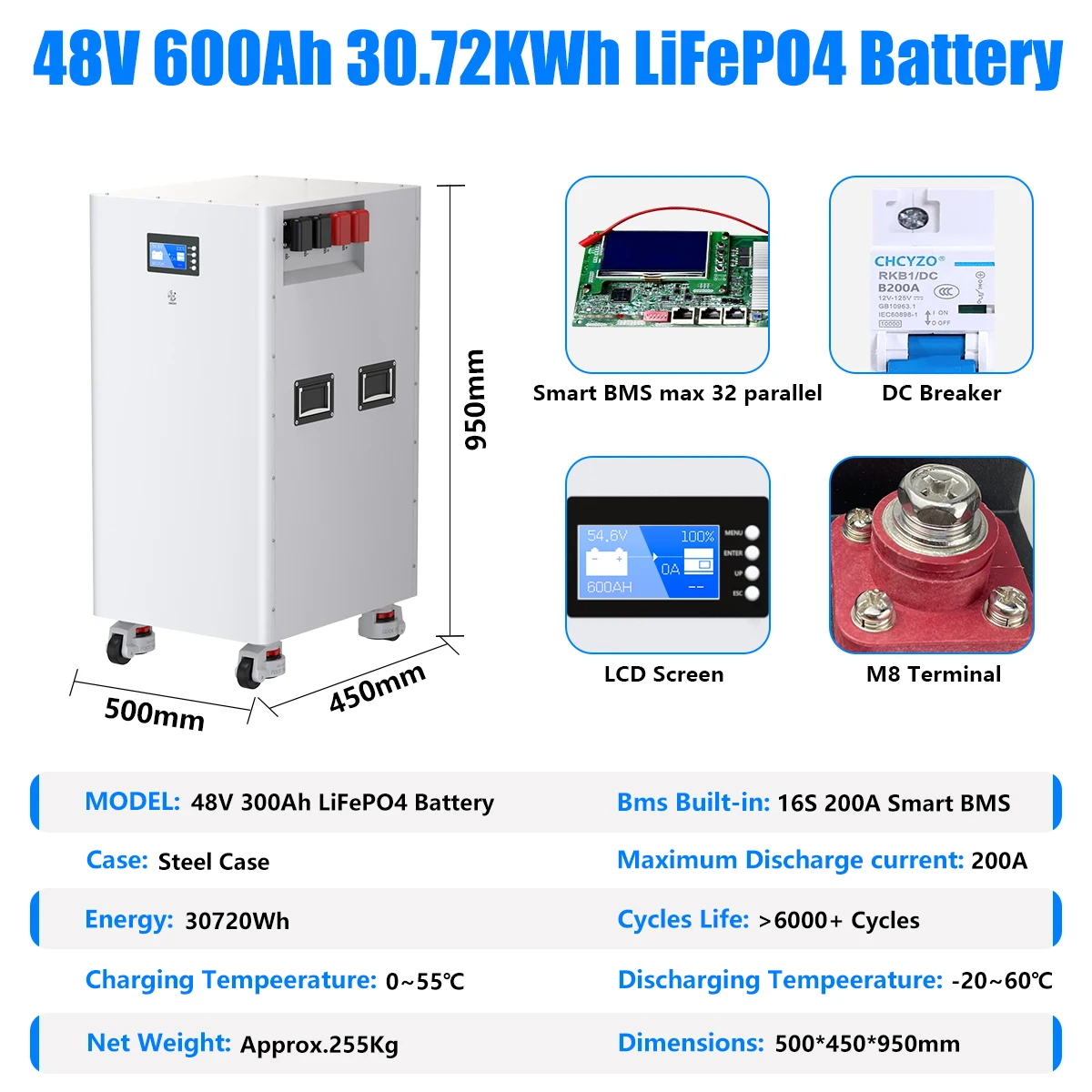

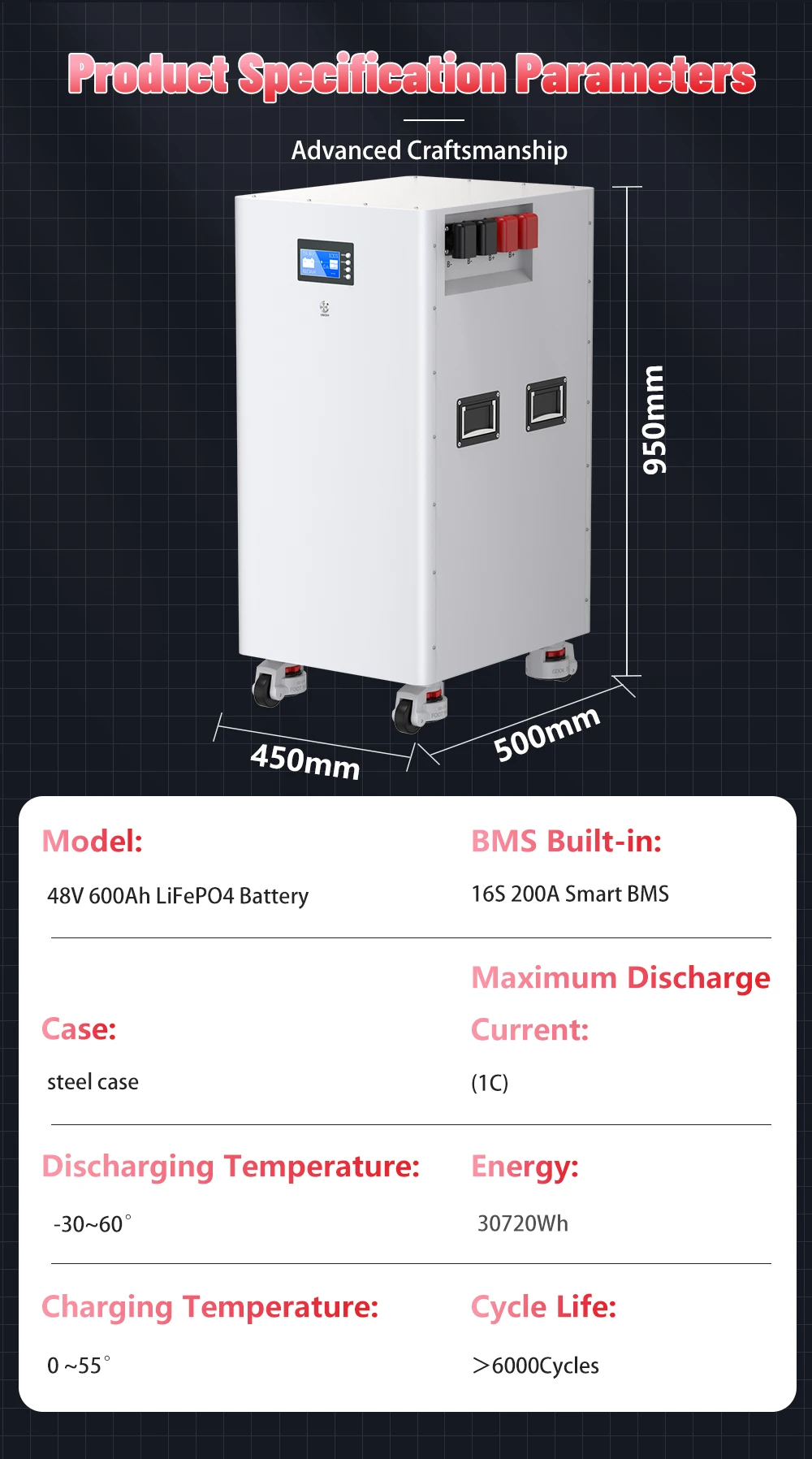

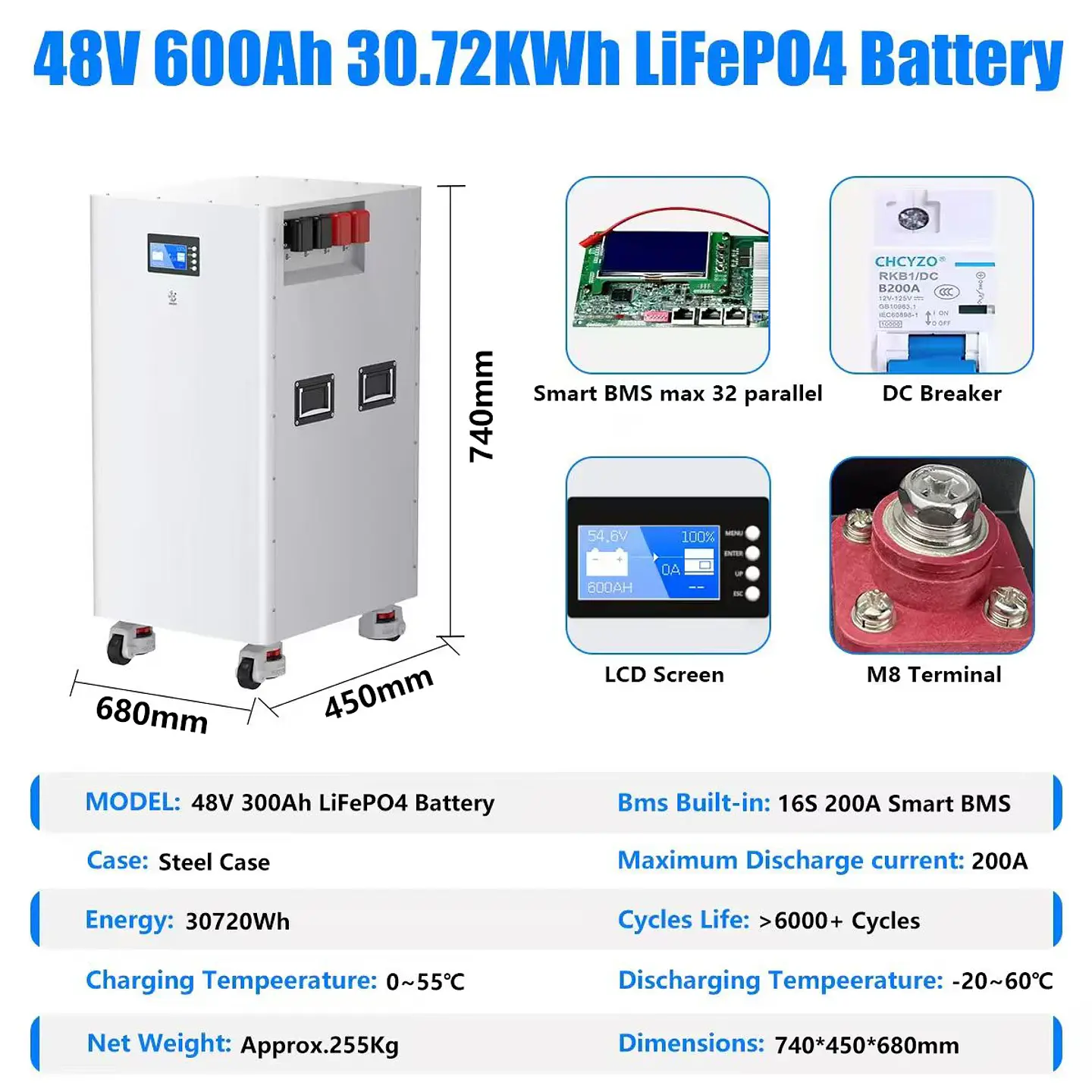

  • Size and weight conflict: the listing gives the size as 530 x 270 x 960mm in one section and 500 x 450 x 950mm in another, and the weight as 135kg in one section and 230kg in another - confirm the size and weight before ordering

Who this battery is for

This battery suits an off-grid solar system that needs 5kWh to 30kWh of storage in a single pack, with room to monitor every cell from a phone or a computer. The 200A BMS handles large inverters, and the Bluetooth app and PC monitor let you watch voltage, temperature, and state of charge without opening the case. Measure your install space against the size figures above, and confirm which one is correct before you order.

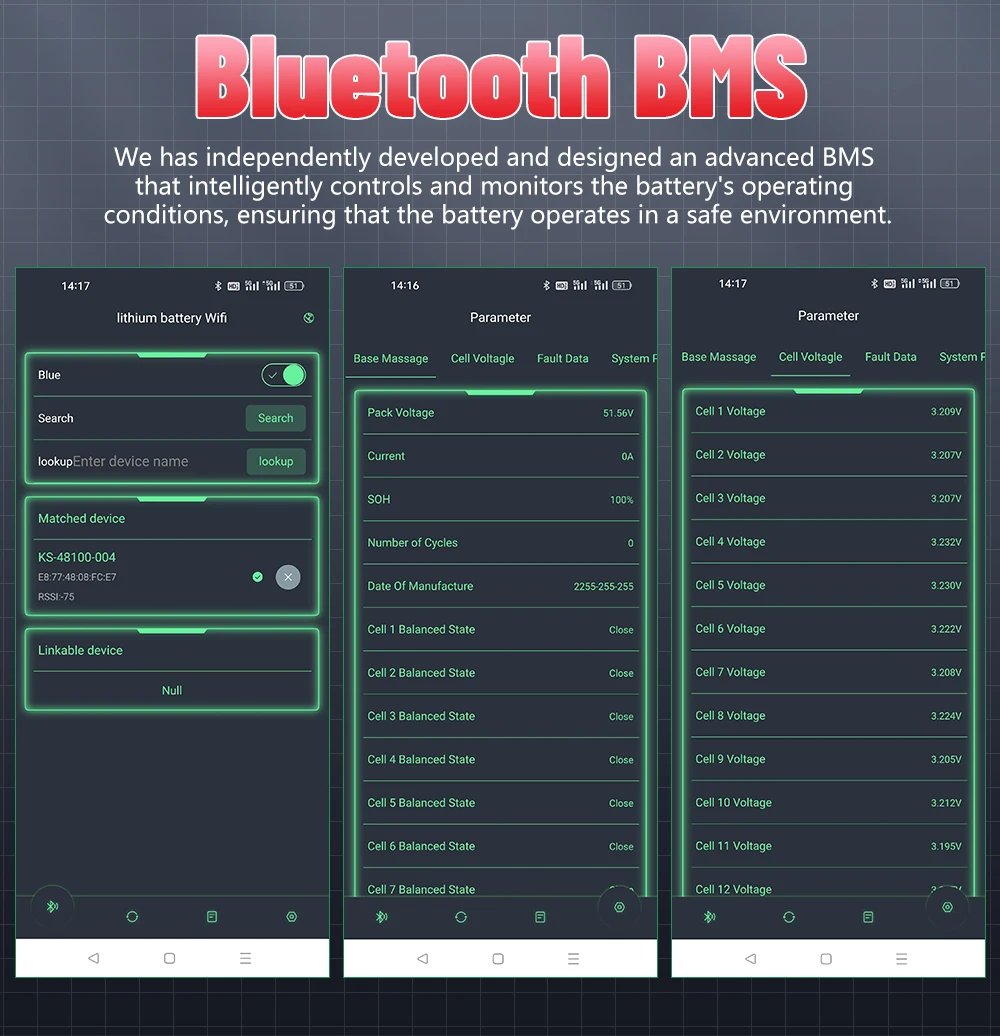

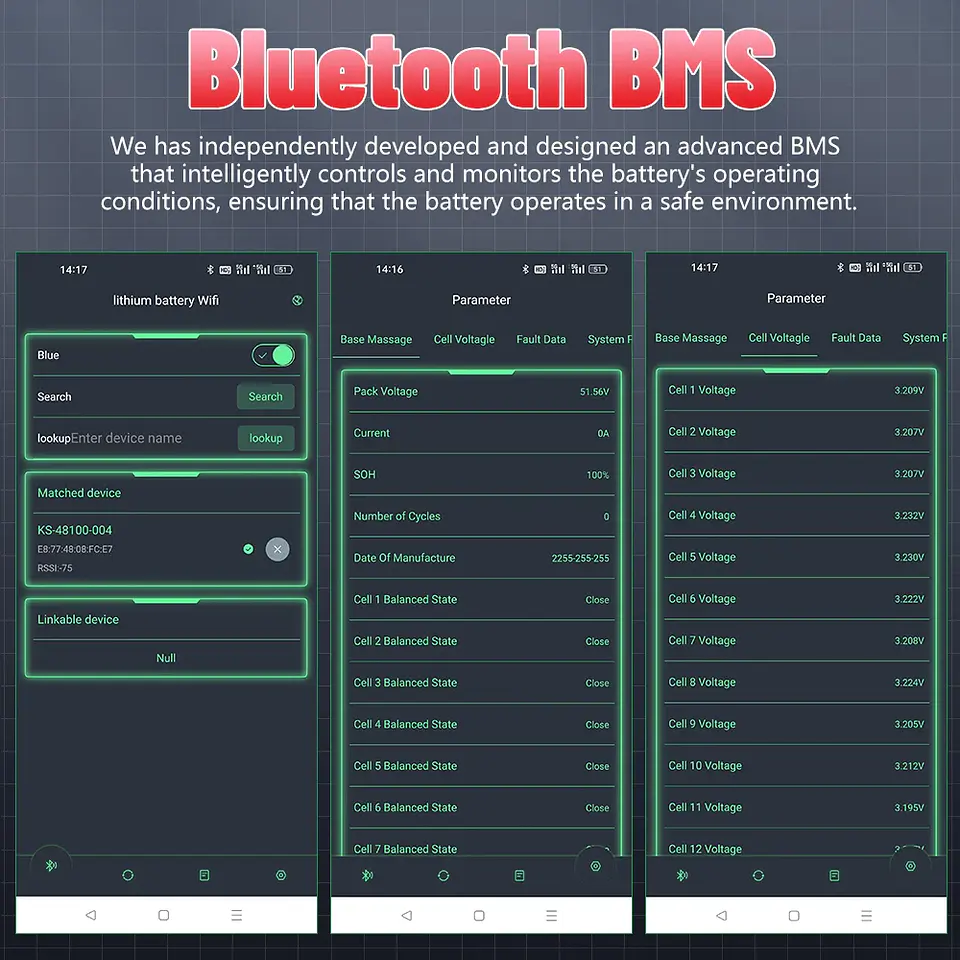

How do I monitor this battery?

Use the Bluetooth app on your phone or the RJ45-to-USB PC monitor, because both read voltage, temperature, state of charge, state of health, cycles, and capacity for each cell through the built-in BMS.

Compare it with our 48V LiFePO4 battery for home solar storage, and read how much battery storage you really need before you size your system.

Delivery note: Free shipping. The supplier ships DDP with no customs fees after ordering, and states EU delivery of 7-10 days from the Poland warehouse. US delivery time is not stated in the listing. Returns within 30 days. Nova Bliss is a US-based company - see our shipping policy for details.
