48V LiFePO4 Battery Pack 100-200Ah - 5-10kWh, 100A BMS
Description
A 48V LiFePO4 battery pack for home solar storage, with a built-in 16S 100A BMS, Grade A prismatic cells, and a 10-year warranty.
Key specifications
- Nominal voltage: 51.2V (a 48V system)

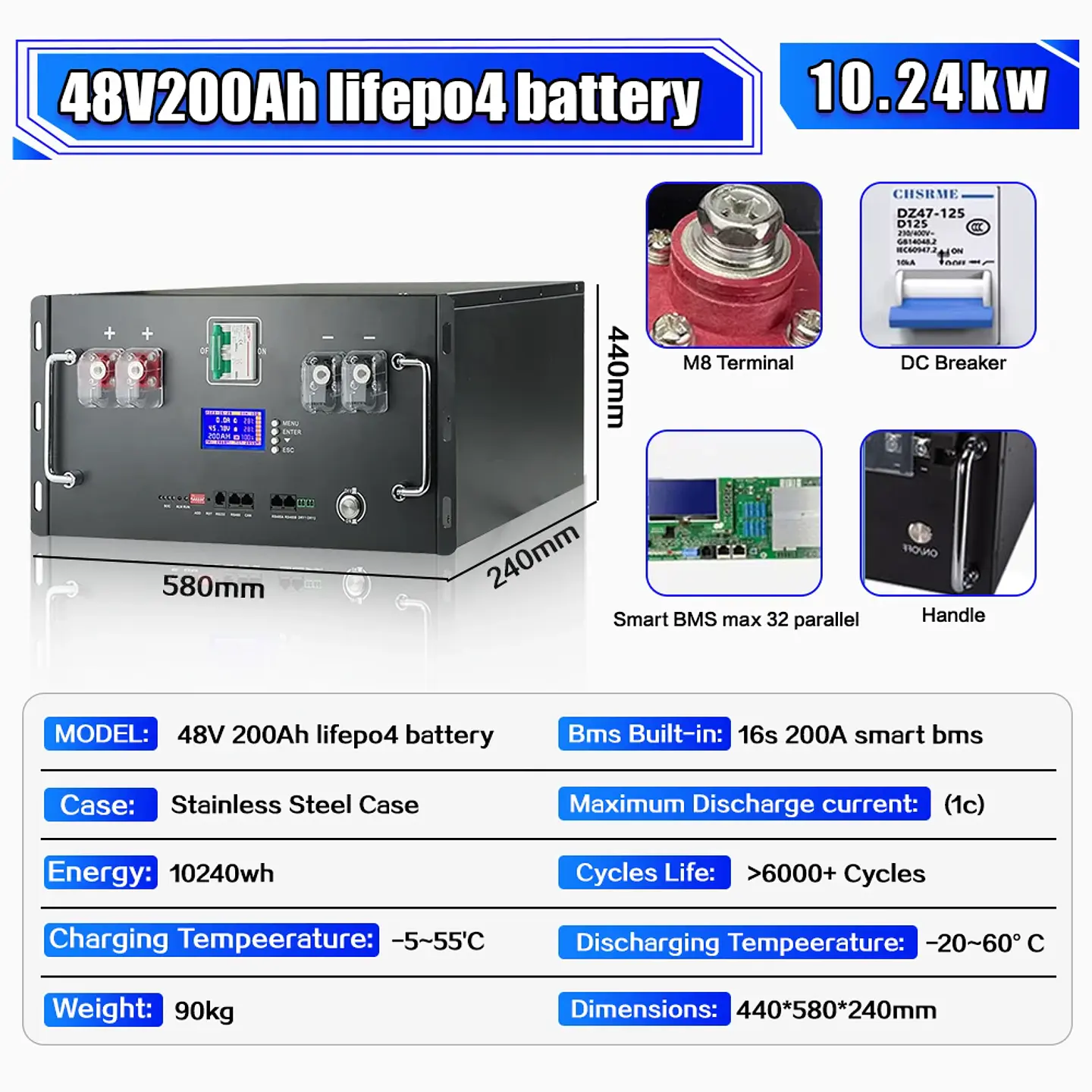

- Capacity options: 100Ah (5120Wh), 120Ah (6144Wh), and 200Ah (10240Wh)
- BMS: built-in 16S 100A, with CAN and RS485 communication
- Parallel: up to 32 units in parallel, as listed
- Cycle life: more than 6,000 cycles at 0.2C, to 80% of original capacity
- Charge voltage: 58.4V plus or minus 0.4V; maximum charging and discharging current: 100A
- Discharge cut-off voltage: 40.0V
- Cells: 16 new Grade A prismatic cells per pack, as listed
- Case: metal, with dual M6 terminals, an LCD screen, a one-touch on/off switch, and SOC indicator lamps

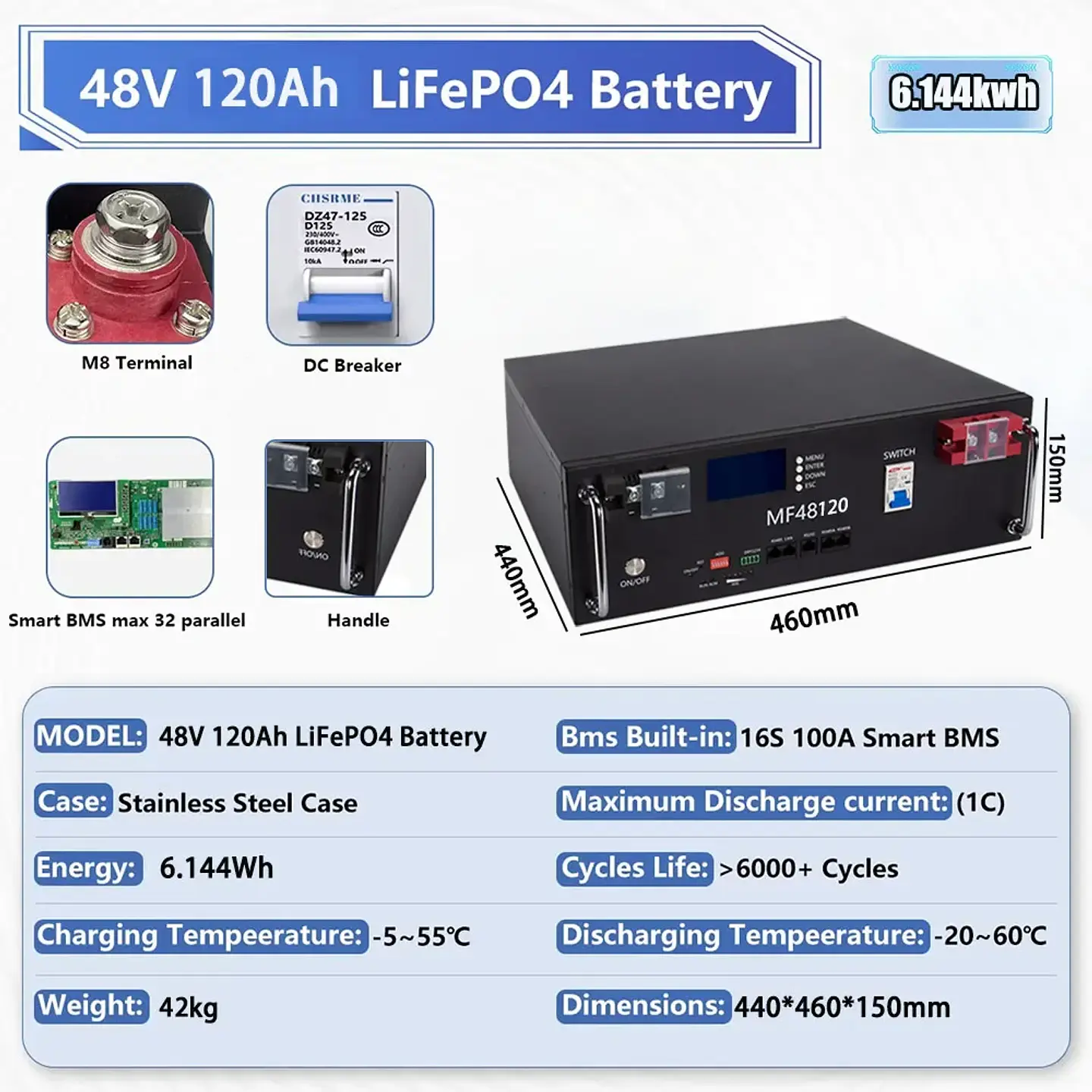

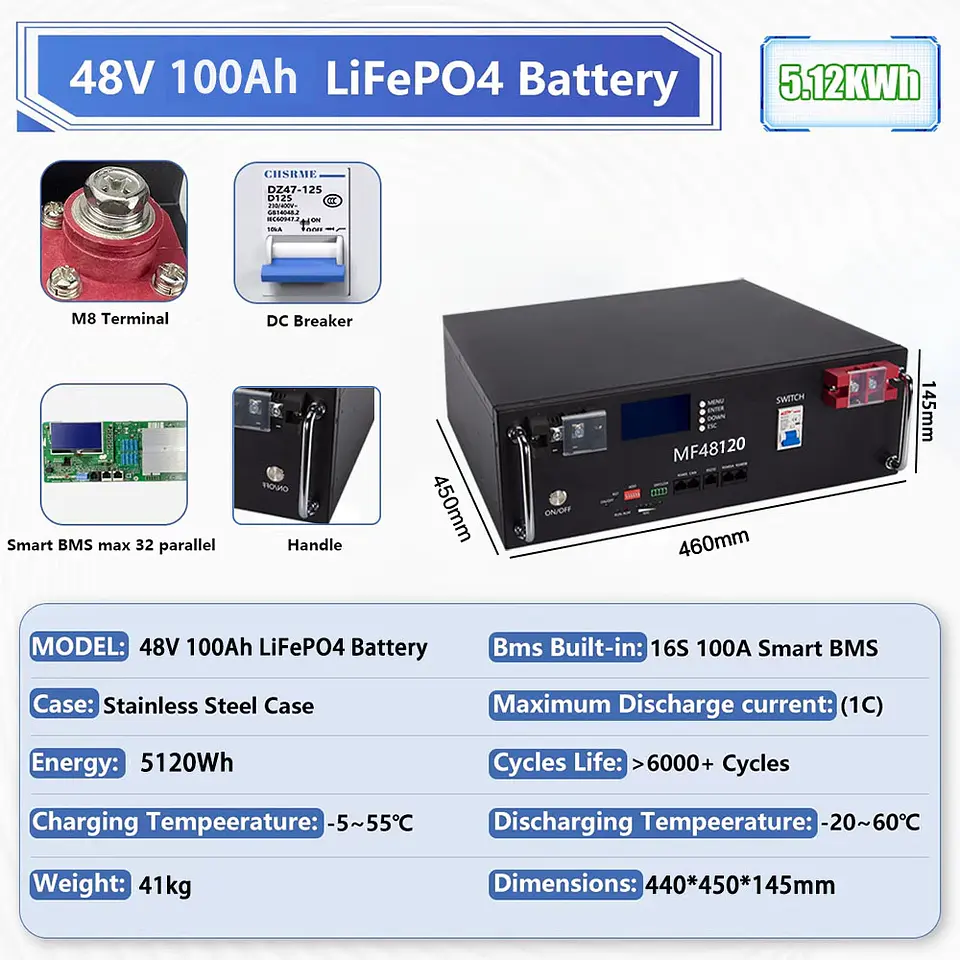

- 100Ah size: 440 x 450 x 145mm, about 42kg; 120Ah size: 440 x 460 x 150mm, about 42kg; 200Ah dimensions: not stated
- Water and dust resistance: listed only as IP5, so the full rating is not stated
- Warranty: 10 years, as listed
- Package includes: the battery, protective corners, an RJ45 cable for RS485/CAN, parallel cables, and an RJ45-to-USB monitor cable
Who this battery is for
This pack suits a home solar bank, RV, or van that runs on a 48V inverter and needs 5kWh to 10kWh of storage per unit, with room to add more units in parallel later. The LCD and SOC lamps show the state of charge at a glance, and the CAN/RS485 ports let a compatible inverter read the battery directly.

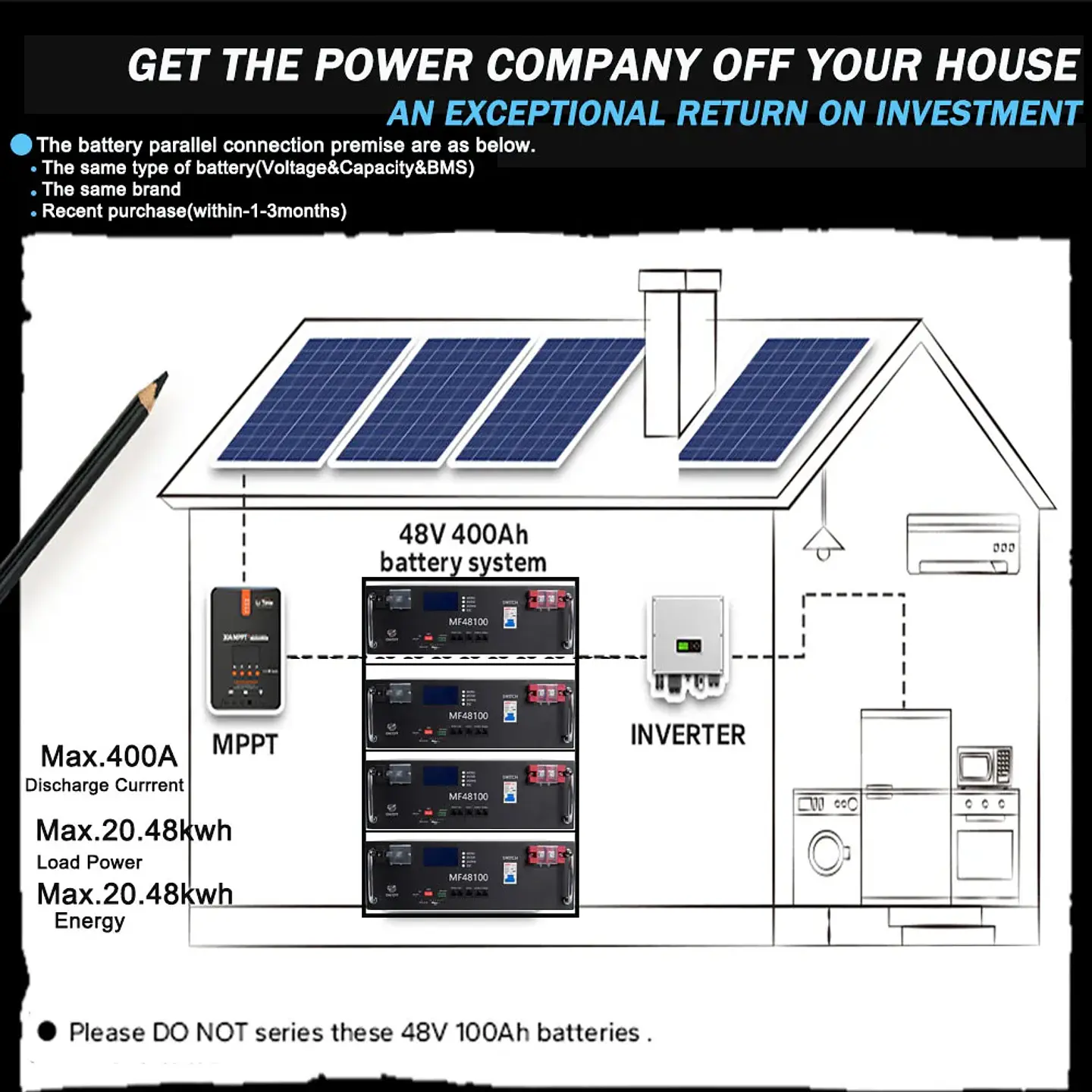

How many of these batteries can I connect together?
Up to 32 units can be connected in parallel according to the listing, which lets you grow a small home bank into a much larger one without replacing the first battery.
Compare it with our 48V 300Ah rolling solar storage battery, and read how much battery storage you really need before you size your system.
