48V LiFePO4 Battery 100-600Ah - Home Solar Storage

Color
Ships From

Description

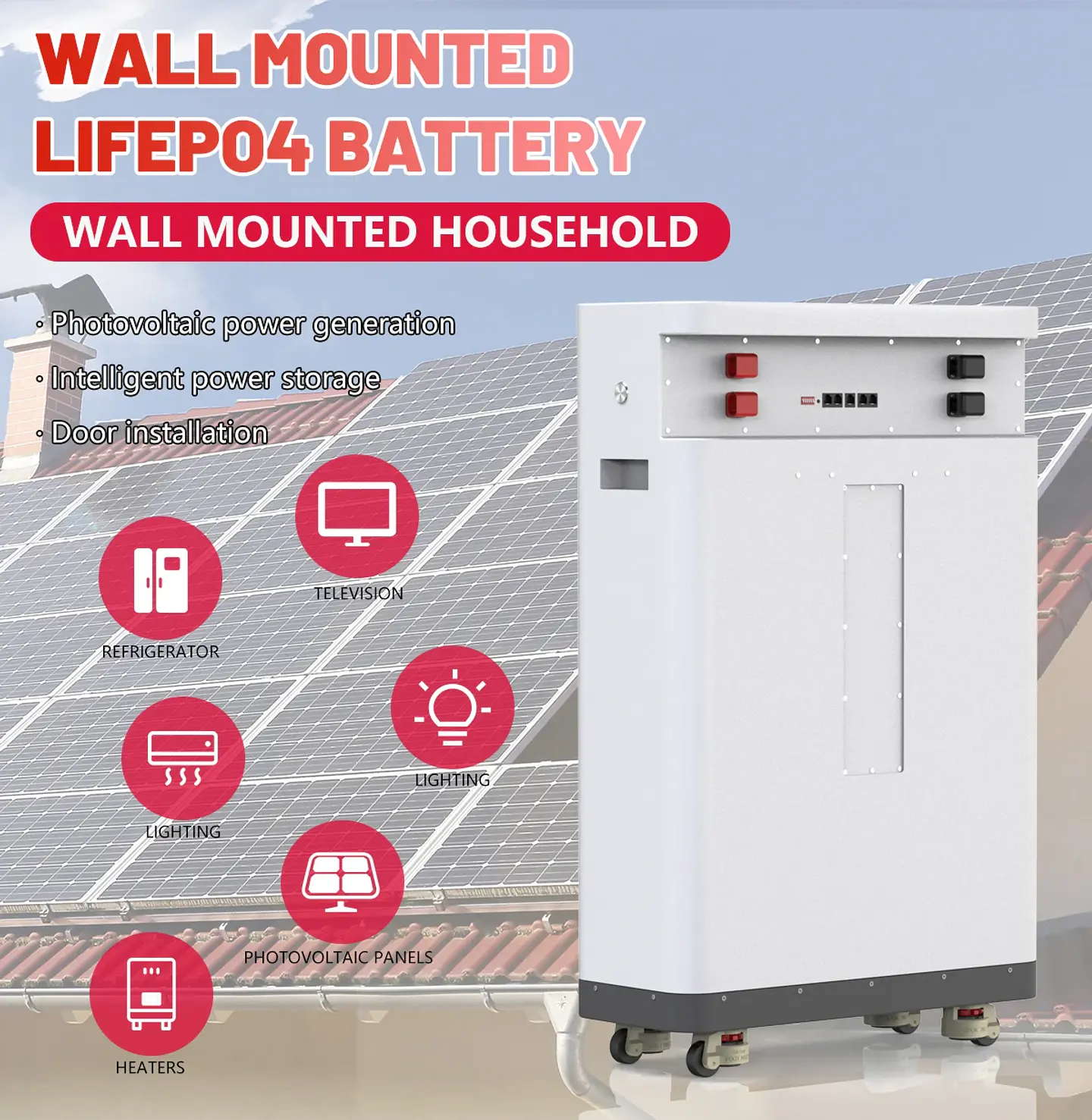

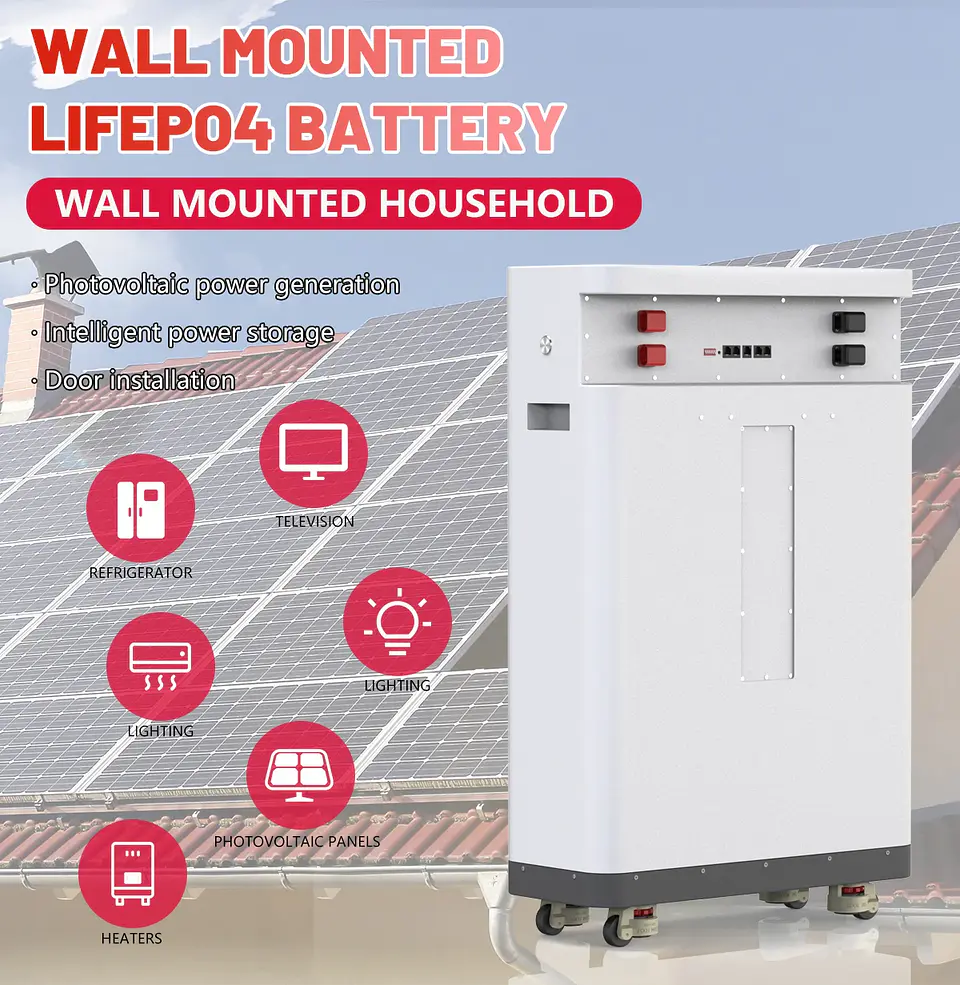

This 48V LiFePO4 battery is a home solar storage unit in sizes from 100Ah to 600Ah, with a smart BMS, CAN/RS485 communication, and Bluetooth monitoring.

Key specifications

  • Nominal voltage: 51.2V (a 48V system)

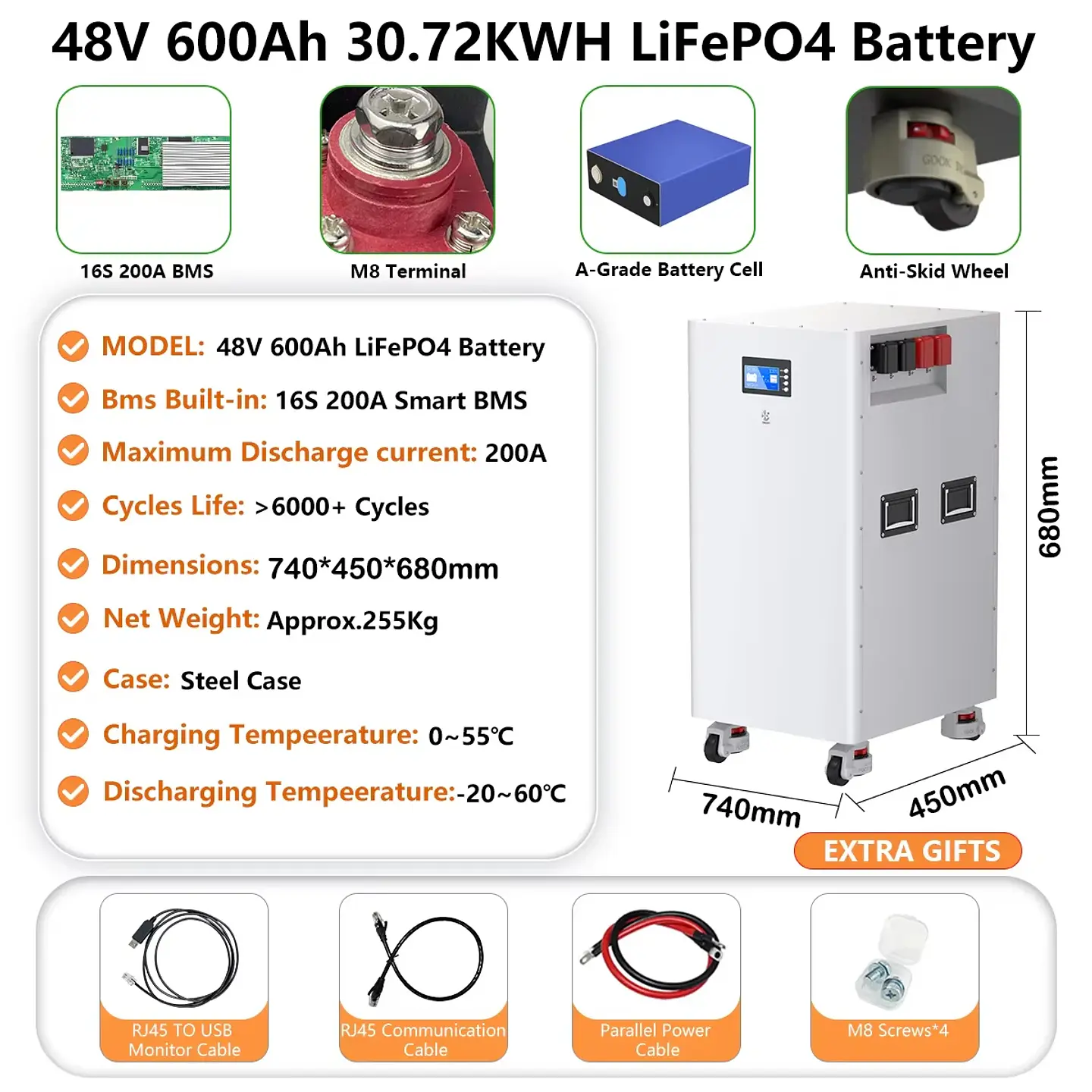

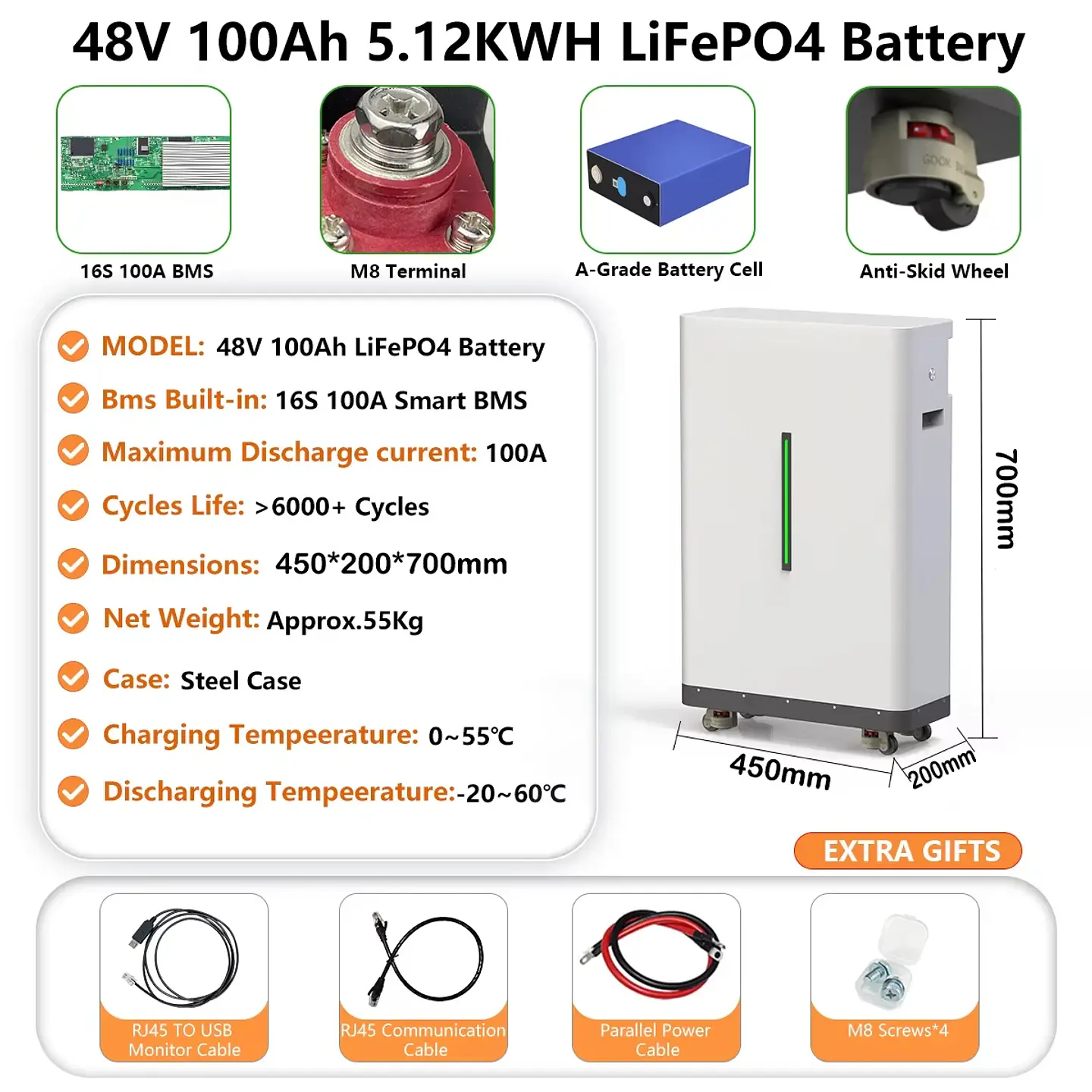

  • Capacity options: 100Ah (5kWh), 300Ah, and 600Ah (30kWh)
  • Energy for the 300Ah unit: the specification table states 15360Wh, while the variant label states 10kWh - the two figures conflict, so confirm the 300Ah energy before ordering
  • Cycle life: 6,000+ cycles in the specification table, while the product name claims 8,000+ cycles - the tested rating is not confirmed
  • Maximum charging voltage: 58.4V; maximum charging and discharging current: 300A (1C) for the 300Ah unit, as listed

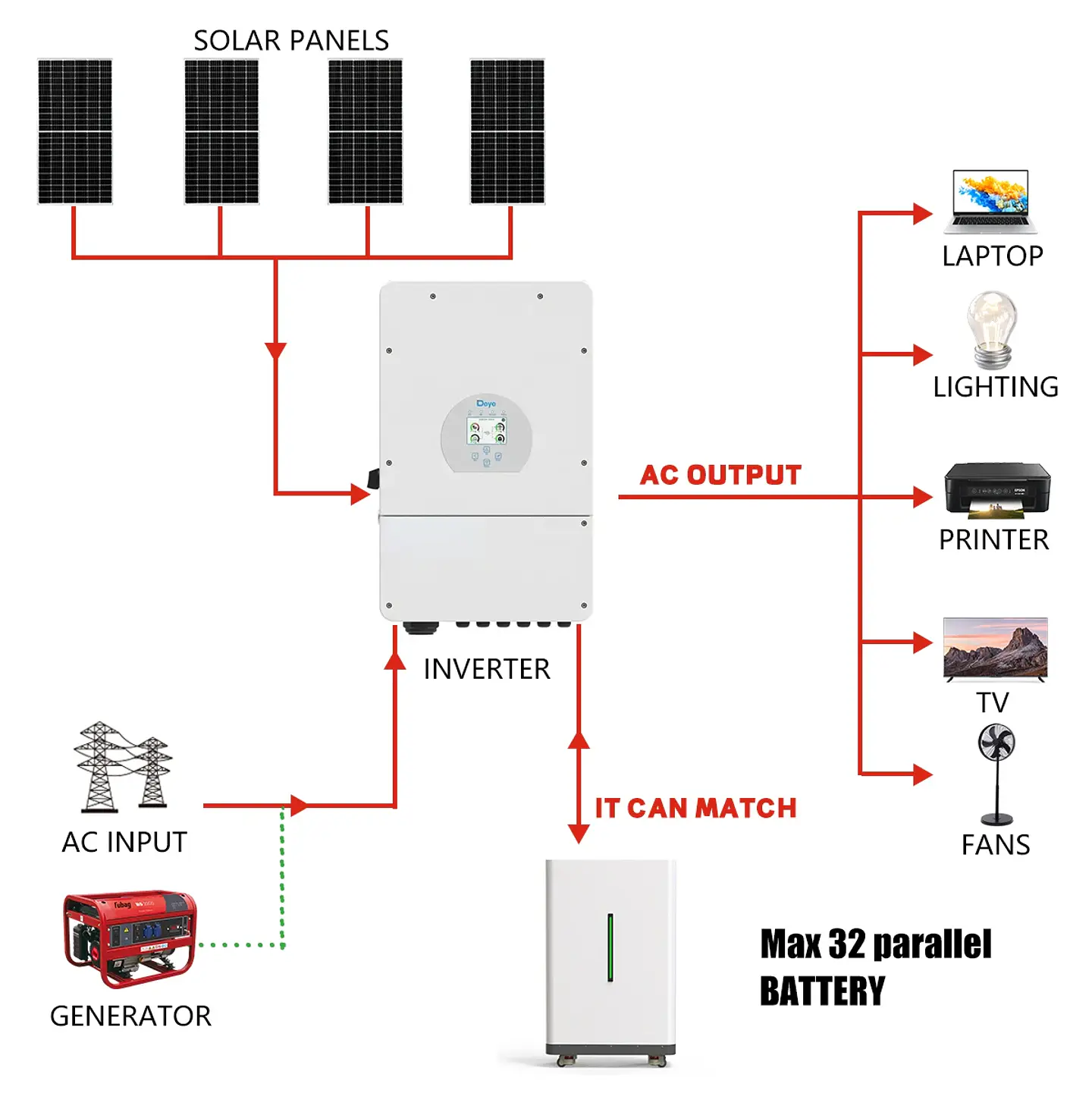

  • Parallel: up to 32 units in parallel, as listed
  • Cells: new A-grade cells, listed as CATL, with an intelligent BMS that balances cell voltages

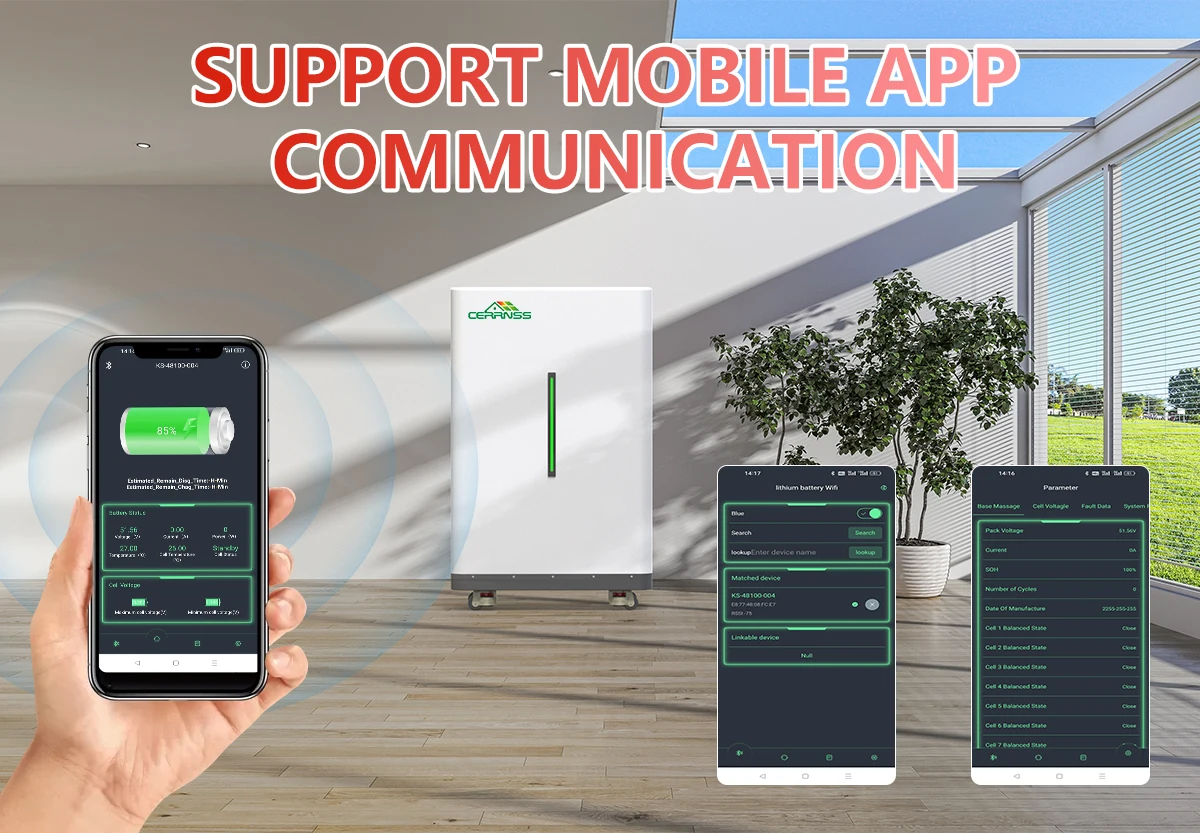

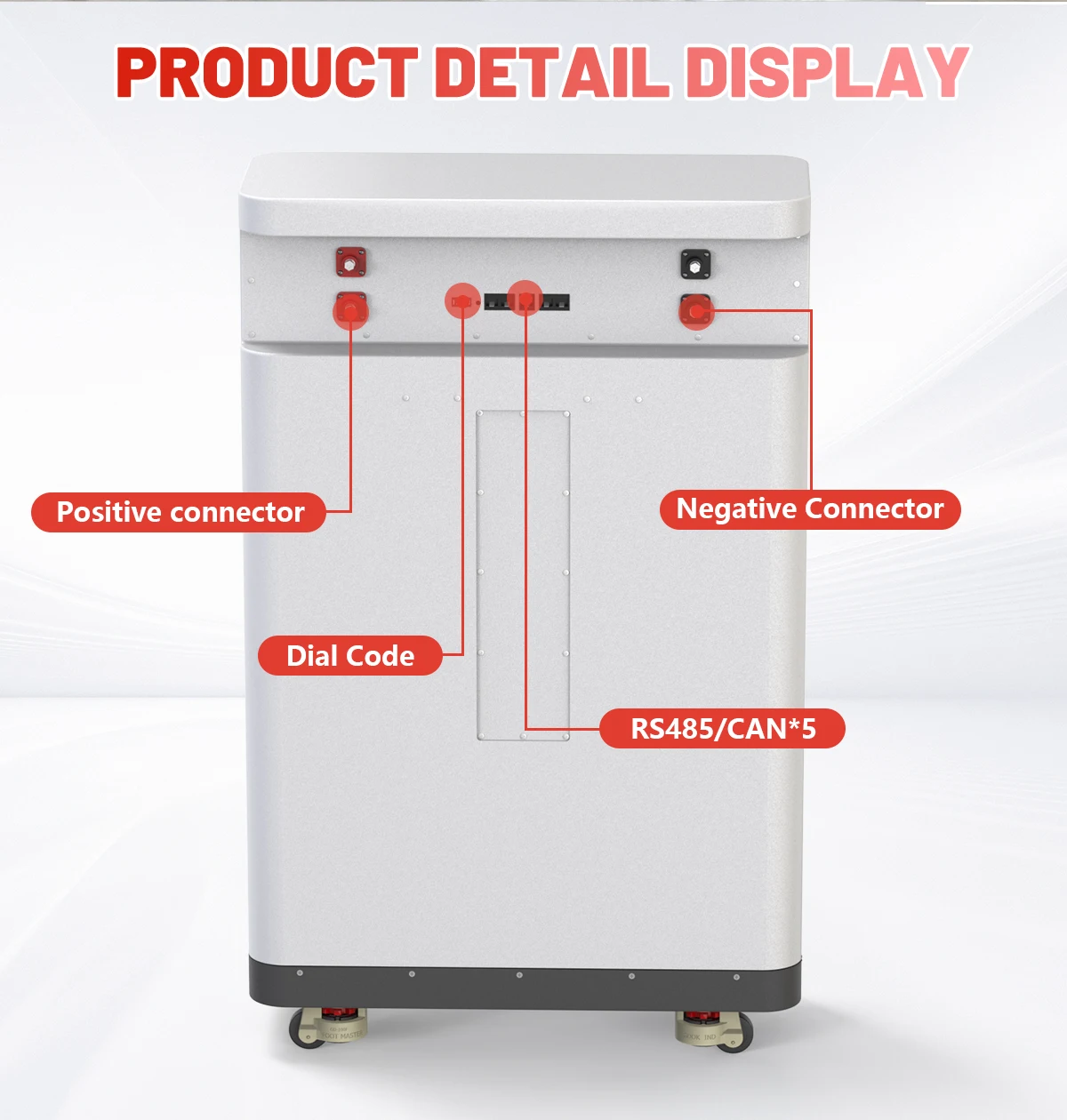

  • Communication: CAN/RS485, with Bluetooth and computer software for monitoring

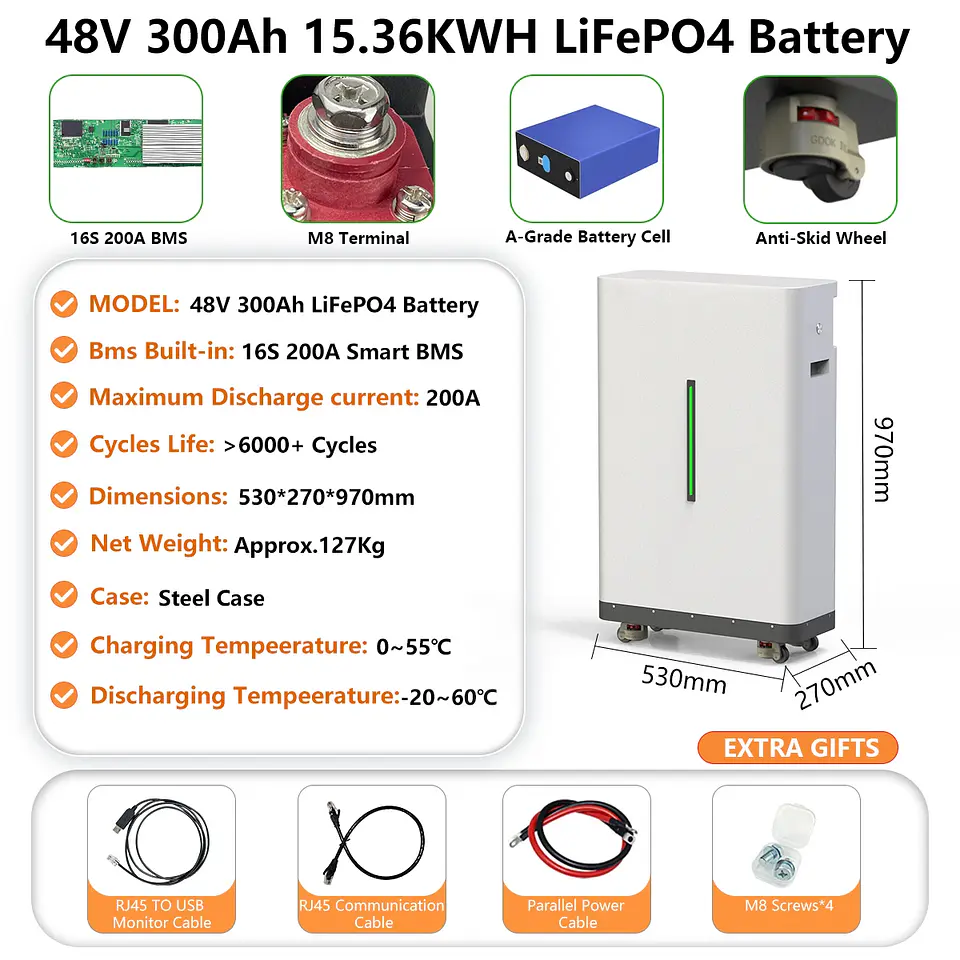

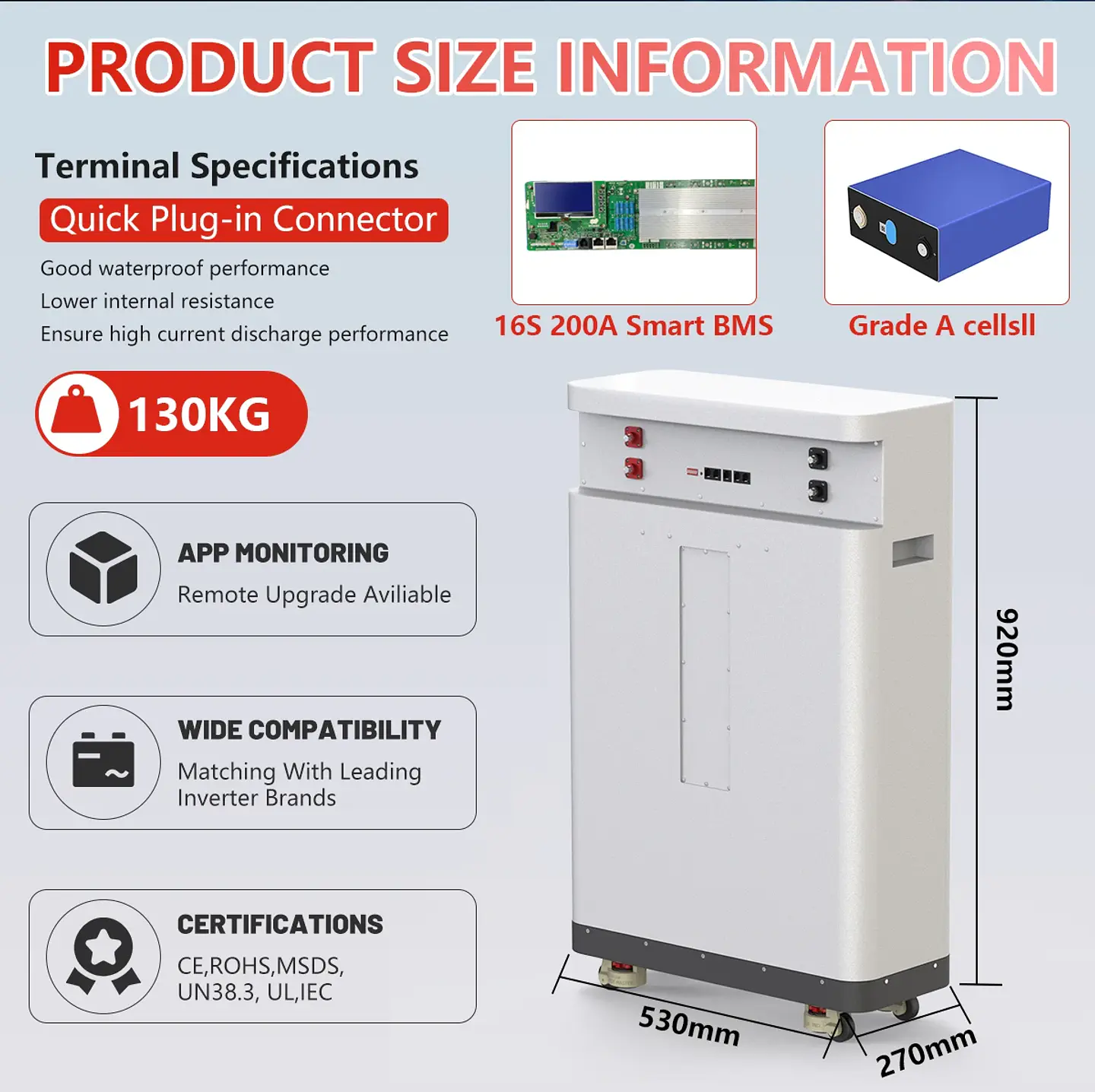

  • 300Ah size: 968 x 530 x 270mm, about 135kg, with M8 terminals; dimensions and weight for the 100Ah and 600Ah units are not stated
  • Charging temperature: -5 to 55 degrees C; discharging temperature: -20 to 60 degrees C
  • Compatible inverter brands listed: Victron, EASUN, Goodwe, Growatt, Voltronic, Deye, LXP, Sofar, GinLong, SMA, and more

Who this battery is for

This battery suits a home that needs serious storage, from a 5kWh starter bank up to a 30kWh unit for a large off-grid house. Because it speaks CAN/RS485, it pairs cleanly with the mainstream hybrid inverters listed above, and the parallel option means you can start with one unit and add more later.

Which inverters work with this battery?

The listing names Victron, EASUN, Goodwe, Growatt, Voltronic, Deye, LXP, Sofar, GinLong, and SMA as compatible, so check your inverter model against that list before you order.
