Remark:

We offer lithium, lifepo4 and ni-mh battery, accept customized battery pack, we can't update all items here. If any battery you want, please take it easy to contact with me tell me the capacity voltage and size you want, thanks.

No. Item Specification

1 Charge cut-off voltage DC 58.4V/29.2V

2 Nominal voltage 48V/24V

3 Nominal capacity 50/80/100/120/150/200AH

5 Charge current Standard charge: 0.2C Approx 6 Hour Rapid charge: 0.5C Approx 2.5 Hour

6 Standard Charging method 0.2 CC(constant current) charge to 58.4V, then CV(constant voltage 58.4V) charge till charge current decline to less than 0.02C

7 Max. charge current 50A (50-100Ah capacity) 100A (150-200Ah capacity )

8 Max continual discharge current :  use 100A BMS for 50-120Ah capacity, 200A  BMS for 150-200Ah capacity
9 Max.Pulse Current 200A(1-2S)  (50-120Ah capacity), 400A (150-200Ah capacity )(1-2S)

10 Discharge cut-off voltage 40V

11 Cell 3.2V Lifepo4

12 Operating temperature Charging: 0°C - 45°C Discharging: -10°C- 60°C 13 Storage temperature -10°C to + 45°C

15 Battery Dimension

17 BMS built in Yes

18    Cycles:6000 times DPD 80%

BMS ( Battery Management System )

BMS is higher level PCM, which is safety control and management system to monitor battery status in order to make battery better working and lengthen battery life time objectively. BMS is mainly used in high capacity li-ion/li-polymer/lifepo4 battery packs. BMS is advanced integration of management, protection, communication and self-diagnose and cell balancing.
Major functions:

1.     Overcharge protection

2.     Overdischarge protection

3.     Overcurrent protection

4.     Overheat protection(NTC)

5.     Short circuit protection

6.     Temperature sensing

7.     Cell monitoring & balancing

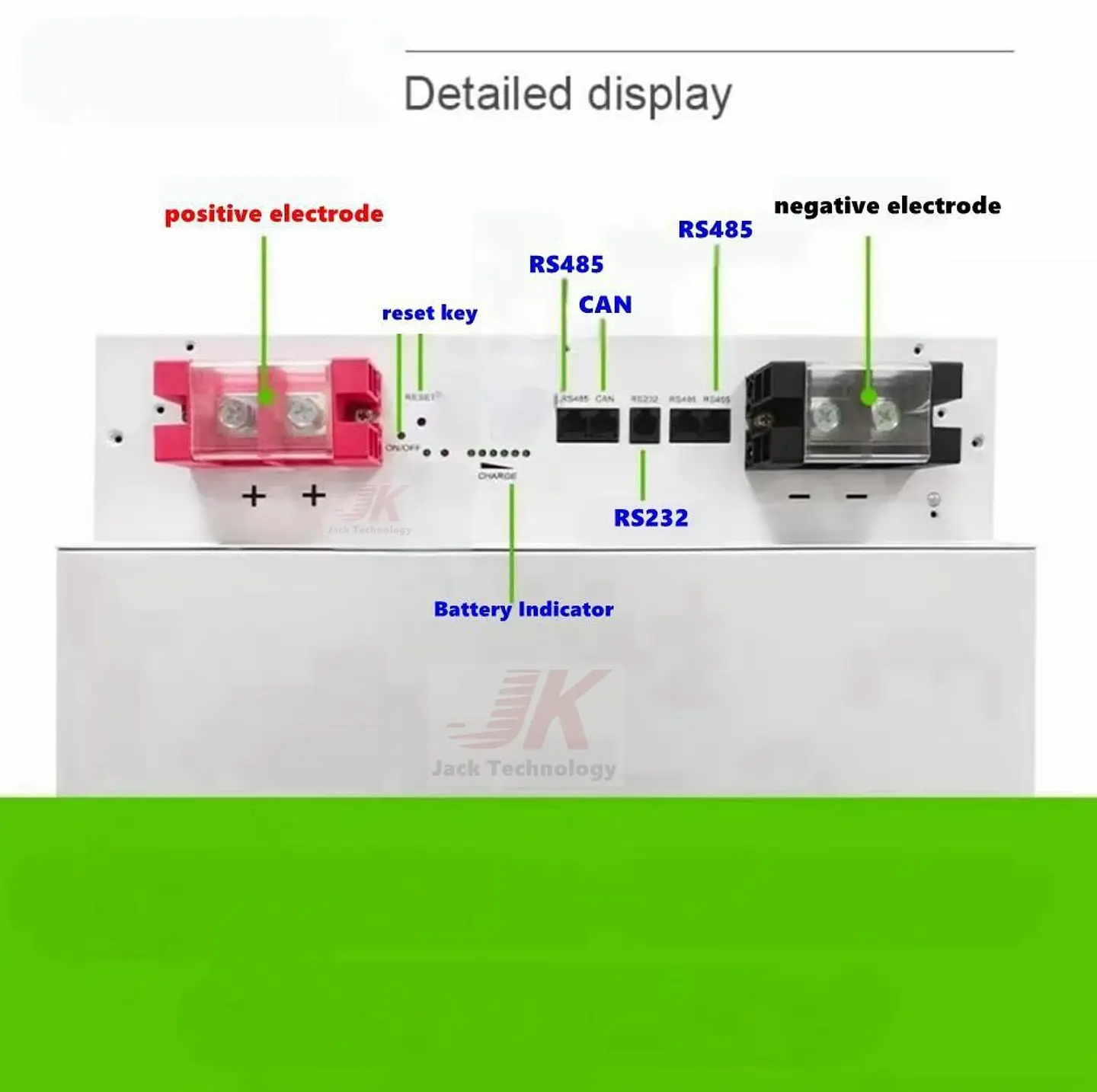

8.     Communication interface

9.     Self-diagnose

10.   Power gauge
